Manual Bellows Sealed SS Angle Valves (CF flanged)
Reliable, economical, general-purpose components for HV and UHV applications requiring cleanliness and corrosion resistance.
In the open position
- Edge-welded bellows and valve seat move out of the gas path thereby achieving high conductance
- Can withstand intermittent baking to 200° C (150° C Continuous), improving ultimate vacuum
Features
- Leak rate across seat: 2x10-9 mbar L/s
- Pressure Max: Atmospheric pressure
- Pressure Min: 1x10-9 Torr
- Feature fluorocarbon o-ring seat seals, bellows-sealed shafts, and bonnet seals (select copper for higher temperature bakeout and better ultimate vacuum)
- Available in manual or pneumatic actuation
- Normal repairs can be made without removing the valve body from the system
NOTE: We list a wide variety of standard tube sizes from 3/8" to 4". Other sizes and valves with mixed flanges are available on request.
NOTE: Pneumatic valves require a solenoid operator (sold separately). Please see the Angle Valve Accessories chart for the sizes/voltages that are available.

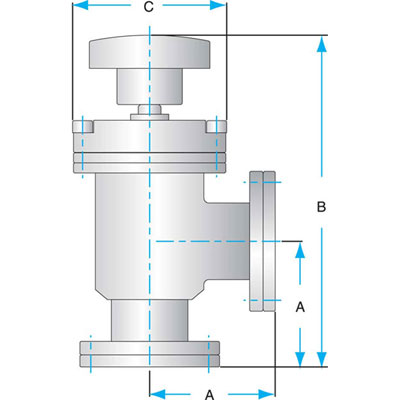

Dimensional Drawings
SA0150MVCF
Drawing: SA0150MVCF
