UHV Angle Valve (Dn16, Dn40, Dn63) (Series 284)
Search Products in Series 284
| {{i.DN}} | {{i.MATERIAL}} | {{i.FLANGE}} | {{i.ACTUATOR}} |
Suited for most corrosive gases. Extremely low outgassing rate.

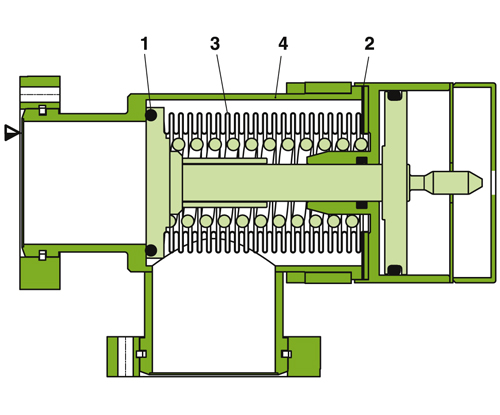

.jpg)
Specifications Table
| Series Number | 284 |
| Series Name | UHV Angle Valve (Dn16, Dn40, Dn63) |
| Description | UHV angle valves. Extremely low outgassing rate. |
| Actuator Types | Manual actuator (hand wheel), Pneumatic actuator (single achting with closing spring NC) |
| Sealing Technology | |
| Sealing Gate | FKM (VITON®) |
| Sealing Bonnet | Metal |
| Feedthrough | Bellows |
| Leak Rate - Body | < 5 . 10-10 mbar ls-1 |
| Leak Rate - Seat | < 1 . 10-9 mbar ls-1 |
| Nominal inside diameters (ID) in mm (inches) | 16 (5/8") - 63 (2 1/2") |
| Body material | Stainless steel |
