Beam Stopper Insert (Series 793)
| {{i.DN}} | {{i.MATERIAL}} | {{i.FLANGE}} | {{i.ACTUATOR}} |
In UHV and extreme UHV systems for protecting experiments from beam load up to max. 6 kW.
Specifications Table
| Series Number | 793 |
|---|---|
| Series Name | Beam Stopper Insert |
| Description | For use in multiple applications, e. g. photon stopper. |
| Actuator Types | Pneumatic actuator (double acting) |
| Sealing Gate | none |
| Sealing Bonnet | none |
| Feedthrough | Bellows |
| Nominal inside diameters (ID) in mm (inches) | 63 (2 1/2") - 200 (8") |
| Body material | Stainless steel |

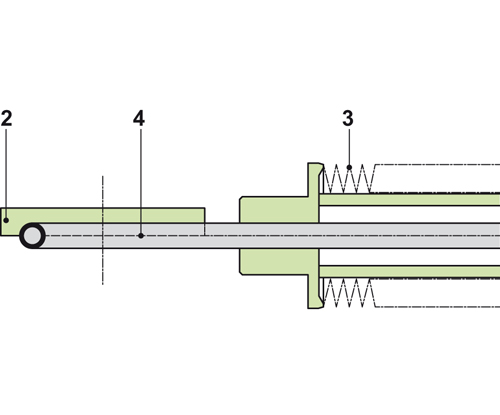

Dimensional Drawings
