PT3416007

Unit Price:

P.O.R.

Availability:

KJLC will contact you

Specifications

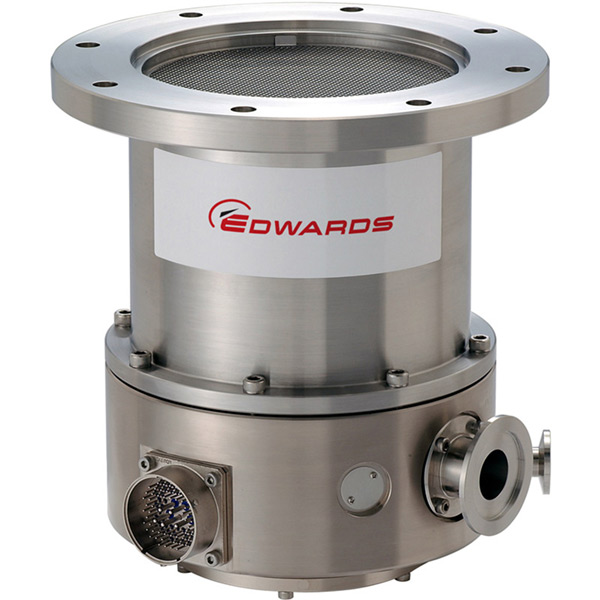

Manufacturer	Edwards Vacuum
Model	STPH451C
Pumping Speeds	N2: 450 L/s H2: 300 L/s
Ultimate Pressure	ISO-F Flange 1.33 x 10^-9 hPA 1.33 x 10^-9 mbar 1.33 x 10^-7 Pa 1.00 x 10^-9 Torr
Max Foreline Pressure	6.67 hPA 6.67 mbar 666 Pa 5.00 Torr
Cooling Method(s)	Method Forced Air Water
Foreline Flange	KF40
Inlet Flange	ISO160-F
Compression Ratio(s)	N2: 100000000 He: 500000 H2: 20000
Weight Lbs	33.0
Weight kg	15.0
Lubrication Type	Dry
Vacuum Range	High Vacuum (10^-4 - 10^-8 Torr)
Technology Type	Turbomolecular
