PT4616004

Unit Price:

P.O.R.

Availability:

KJLC will contact you

Specifications

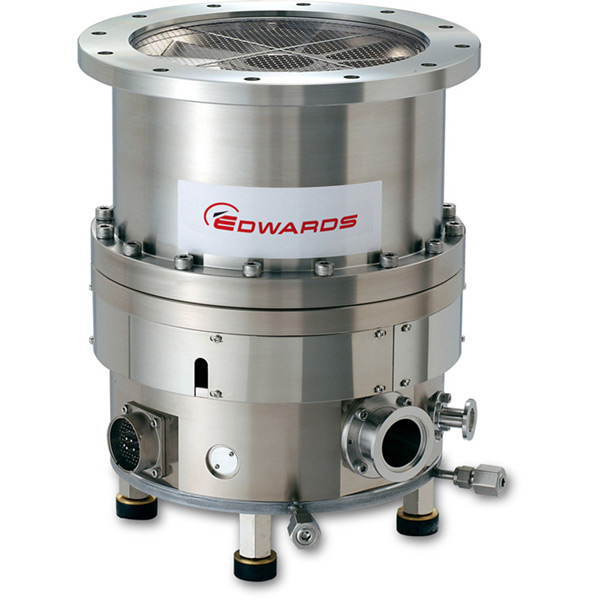

Manufacturer	Edwards Vacuum
Model	STPA1603C
Pumping Speeds	N2: 1600 L/s H2: 1200 L/s
Ultimate Pressure	ISO-F Flange 1.33 x 10^-9 hPA 1.33 x 10^-9 mbar 1.33 x 10^-7 Pa 1.00 x 10^-9 Torr
Max Foreline Pressure	2.67 hPA 2.67 mbar 266 Pa 2.00 Torr
Cooling Method(s)	Method Forced Air Water
Foreline Flange	KF40
Inlet Flange	ISO200-F
Compression Ratio(s)	N2: 100000000 H2: 7000
Weight Lbs	77.0
Weight kg	35.0
Lubrication Type	Dry
Vacuum Range	High Vacuum (10^-4 - 10^-8 Torr)
Technology Type	Turbomolecular
