PKD03400

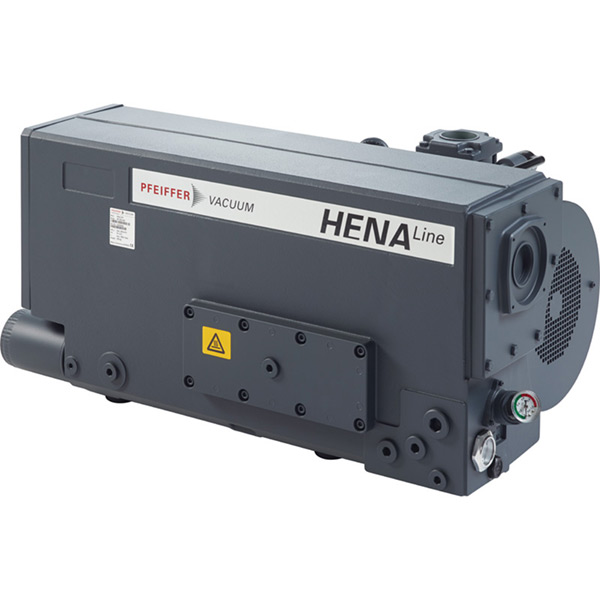

PUMP, ROTARY VANE PUMP, PFEIFFER HENA 201, G 2" INLET FLANGE, 141.1CFM / 200M^3/HR, 190-200 / 220-230 / 380-400 VAC THREE PHASE

Unit Price:
P.O.R.
Availability:
KJLC will contact you
Quantity:
HENA 201 Series Manual
For a download of the product manual, click here.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications

Manufacturer Pfeiffer
Model HENA 201
Pumping Speeds
50 (Hz)
117 CFM
3333 L/min
55.6 L/s
200 m3/hr
60 (Hz)
141 CFM
3999 L/min
66.7 L/s
240 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)
4600 g/hr
Ultimate Pressure
Total With Gas Ballast
7.00 x 10-1 hPA
7.00 x 10-1 mbar
70.0 Pa
5.25 x 10-1 Torr
Total Without Gas Ballast
3.00 x 10-1 hPA
3.00 x 10-1 mbar
30.0 Pa
2.25 x 10-1 Torr
Cooling Method(s) Method
Convection
Motor Power HP 8.85
Motor Power kW 6.60
Inlet Flange G 2"
Exhaust Flange G 2"
Oil Capacity Quarts
*Unless otherwise noted
6.90
Oil Capacity Liters
*Unless otherwise noted
6.50
Noise db(A) 74.0
Weight Lbs 400
Weight kg 182
Dimensions in. 38.3 x 22.3 x 16.5
Dimensions mm. 974 x 566 x 420
Lubrication Type Wet
Vacuum Range Coarse Vacuum (760 - 1 Torr)
Technology Type Rotary Vane

Accessories Table

For Pump Model(s) Description Accessory Type Part Number Price In Stock Add To Cart Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
For Pump Model(s) Description Accessory Type Part Number Price In Stock Add To Cart Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
All Hena Pumps KJLC 300 Convection Enhanced Pirani, KF16
Gauge
KJL300806
$601.00
In Stock Add Item
All Hena Pumps Power Supply, KJLC 275i or 300, US Plug End
Power Cable
KJLPS401A
$73.00
Contact KJLC for Availability
Add Item
