9499330

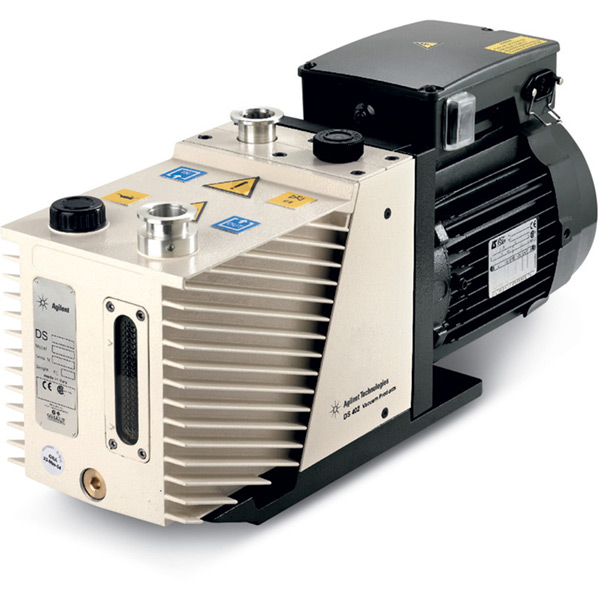

Agilent DS402 Rotary Vane Pump, Standard Series, Hydrocarbon Oil, KF25 inlet flange, 17.4 m^3/hr at 50Hz / 12.31 CFM at 60Hz, Convection cooling, 100–120/200–230 VAC, 50/60 Hz, 1-Ø, Mains Cable Not Included

Unit Price:

$4,500.00

Availability:

KJLC will contact you

Specifications

Manufacturer	Agilent
Model	DS402
Pumping Speeds	50 (Hz) 10.2 CFM 289 L/min 4.81 L/s 17.4 m³/hr 60 (Hz) 12.3 CFM 348 L/min 5.78 L/s 20.9 m³/hr
Ultimate Pressure	Partial Without Gas Ballast 1.00 x 10^-4 hPA 1.00 x 10^-4 mbar 1.00 x 10^-2 Pa 7.50 x 10^-5 Torr Total With Gas Ballast 2.00 x 10^-2 hPA 2.00 x 10^-2 mbar 2.00 Pa 1.50 x 10^-2 Torr Total Without Gas Ballast 2.00 x 10^-3 hPA 2.00 x 10^-3 mbar 2.00 x 10^-1 Pa 1.50 x 10^-3 Torr
Cooling Method(s)	Method Convection
Oil Type(s)	Hydrocarbon Oil Part: KJLSS19Q1

Description	For Pump Model(s)	Accessory Type	Part Number	Price	In Stock	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Description	For Pump Model(s)	Accessory Type	Part Number	Price	In Stock	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
KJLC 300 Convection Enhanced Pirani, KF16	All DS/HS Series Pumps	Gauge	KJL300806	$795.00			Combine
Power Supply, KJLC 275i or 300, US Plug End	All DS/HS Series Pumps	Gauge Power Cable	KJLPS401A	$96.00			Combine

No items have been selected Include Main Part: 9499330
