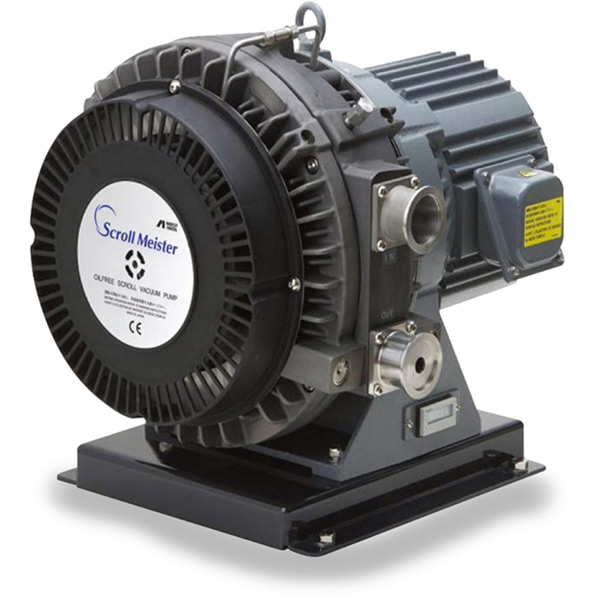

ISP-1000-TH
PUMP, SCROLL, ISP-1000, HORIZONTAL DN 40 ISO-KF INLET/DN 40 ISO-KF OUTLET, 1000L/min @50 HZ, THREE PHASE

Unit Price:
P.O.R.
Availability:
KJLC will contact you
Quantity:
ISP-1000 Series Manual
For a download of the product manual, click here.
Vacuum Pump Repair
& Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Remanufactured Vacuum
Pumps
Click here to view a list of remanufactured vacuum pumps available from The KJLC's Remanufactured Vacuum Pump Division.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact to someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications

Manufacturer Anesta Iwata
Model ISP-1000
Pumping Speeds
50 (Hz)
30.6 CFM
866 L/min
14.4 L/s
52.0 m3/hr
60 (Hz)
36.5 CFM
1033 L/min
17.2 L/s
62.0 m3/hr
Ultimate Pressure
Total Without Gas Ballast
1.00 x 10-2 hPA
1.00 x 10-2 mbar
1.00 x 100 Pa
7.50 x 10-3 Torr
Cooling Method(s) Method
Convection
Motor Power HP 1.90
Motor Power kW 1.40
Inlet Flange KF40
Exhaust Flange KF40
Noise db(A) 67.0
Noise db(A)
(with gas ballast)
74.0
Compression Stages 2
Weight Lbs 132
Weight kg 60.0
Dimensions in. 19.8 x 15.4 x 16.6
Dimensions mm. 504 x 390 x 421
Lubrication Type Dry
Vacuum Range Coarse Vacuum (760 - 1 Torr)
Technology Type Scroll
Dimensional Drawings
Charts

Accessories Table

For Pump Model(s) Description Part Number Price In Stock Add To Cart Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
For Pump Model(s) Description Part Number Price In Stock Add To Cart Combine
ISP-1000, ISP-500C Clamping Kit, For QF40 Flange, Including Aluminum Clamp and FKM Centering Ring
QF40-HDKIT
P.O.R.
Call for Availability Add Item
No items have been selected Include Main Part:  ISP-1000-TH
