PTR21261

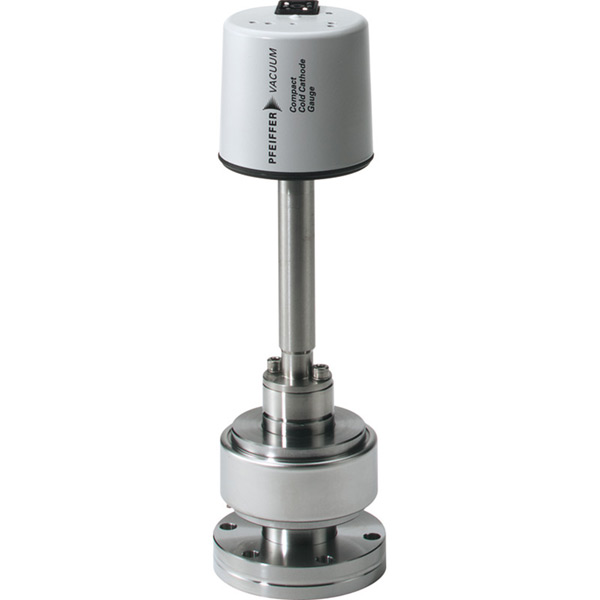

TRANSDUCER, IKR 270, COLD CATHODE, METAL SEALED, EXTENDED TUBE, DN40CF-F

Unit Price:
P.O.R.
Availability:
KJLC will contact you
Quantity:
Gauge Selection Guide
With a variety of gauges to choose from, the Gauge Selection Guide is designed to help you find the right gauge to meet your vacuum requirements.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications

Technology Cold Cathode Extended
Measurements Torr
Min: 7.500 x 10-3
Max: 3.750 x 10-11

mbar
Min: 1.000 x 10-2
Max: 5.000 x 10-11

Temperature Operating
Min: 5.00 ºC
Max: 250 ºC
Min: 41.0 ºF
Max: 482 ºF

Storage
Min: -40.00 ºC
Max: 65.0 ºC
Min: -40.00 ºF
Max: 140 ºF

Bakeout
482 ºF
250 ºC

Materials Exposed to Vacuum Ceramic
Molybdenum
Silver
Stainless Steel
Connectors Hirschmann 6 Pin
Typical
Accuracy
±30% of reading (7.50 x 10-10

          to 7.50 x 10-4

          Torr)
Analog
Output
1.96 to 8.6 VDC
Input
Power
15 to 30 VDC
Communications
(Standard)
Analog
Compliance
and Standards
CE
RoHS
Flange
DN40CF-F

Accessories Table

X CLOSE
Description Accessory Type Part Number Price In Stock Add Item Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Description Accessory Type Part Number Price In Stock Add Item Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Mating Adaptor, IKR 270
Interconnect Cable
B4707283MA
P.O.R.
Contact KJLC for Availability Add Item
1/4 Hard OHFC Gasket, DN40CF
Gasket
GA-0275
$27.35
In Stock
Add Item
Bolt & Nut Set for DN35CF-N40CF, 25 per package
Bolt Set
HBS25028138
$30.50
In Stock
Add Item
Magnetic Shield, IKR and PKR 2xx
Magnetic Shield
PT443155-X
P.O.R.
Contact KJLC for Availability
Add Item
IKR 270 to TPG, 9ft. (3m)
Interconnect Cable
PT448250-T
P.O.R.
Contact KJLC for Availability
Add Item
Include Main Part:  PTR21261
