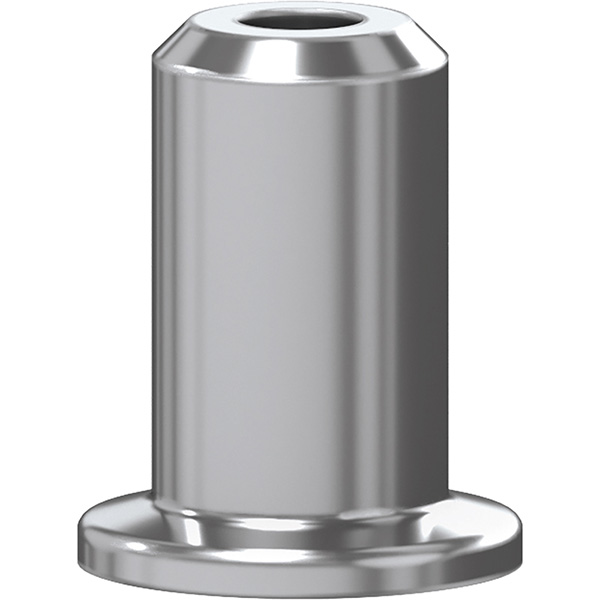

21.2 Pressure Relief Valve
Overpressure protection for vacuum systems
Reliable protection of vacuum systems from pressures > 1.5 bar

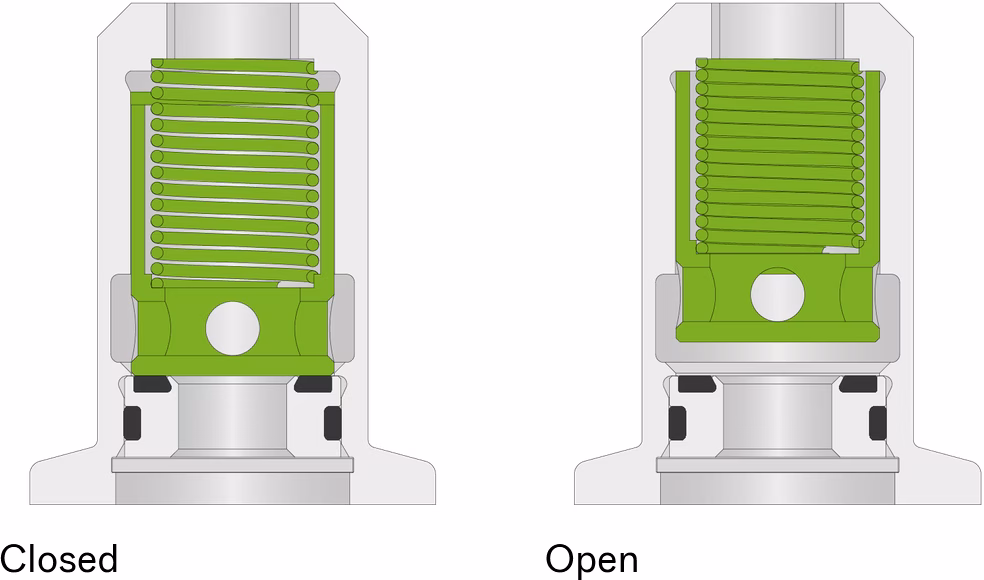

The main requirement of a modern pressure relief valve is its reliable and precise acting relief trigger. The 21.2 relief trigger is driven by a high durability pressure spring that is laid-out for extended lifetime. The trigger is calibrated to open the valve at a pressure of 1.2 to 1.5 bar. Its operating range is set between 1 x 10-8 mbar and 1.2 bar with a gas flow of max. 6 l/min.
Tested in thousands of demanding applications under various process conditions, the 21.2 series has proven its outstanding reliability.
The 21.2 Pressure Relief Valve is available in DN 16mm (5/8“). The valve body is made of stainless steel. The standard flange is ISO-KF. Its bakeout temperature is ≤ 150°C.
Key features of the 21.2 Pressure Relief Valve
Features
- Vacuum system protection > 1.5 bar
- Trigger calibrated to open valve at 1.2 to 1.5 bar
Benefits
- Extended lifetime
- Precise operation
- Low cost of ownership
Specifications Table
| Manufacturer |
VAT
|
|---|---|
| Series |
21.2
|
| Pressure |
Torr Min: 7.50×10-9 Torr Max: 900 Torr mbar 1.00×10-8 mbar bar 1.20 bar |
| Temperature |
Valve Body ≤150 ºC |
|
Mounting Orientation |
Any
|
|
Valve Body Material |
Stainless Steel
|
|
Valve Seal Material |
Fluorocarbon (FKM)
|
