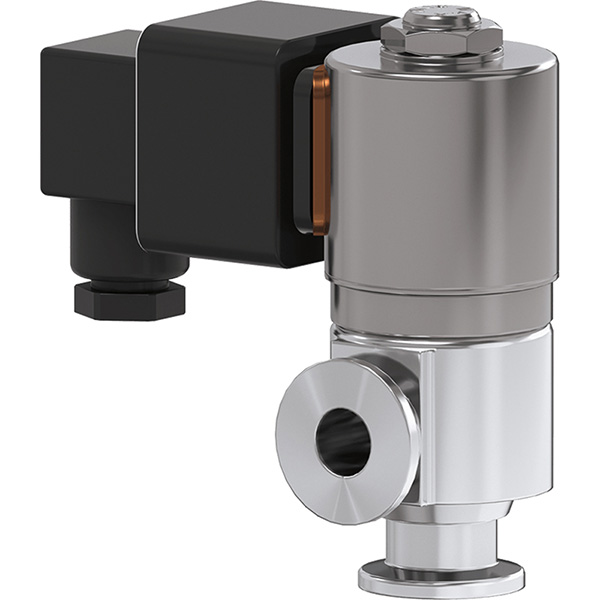

21320-KA64 - VACUUM VENT VALVE, SERIES 213, DN10 (3/8 enlarge image tool

21320-KA64 VACUUM VENT VALVE, SERIES 213, DN10 (3/8") ISO-KF, ALUMINUM, 24V DC SOLENOID ELECTROMAGNETIC ACTUATOR

SKU: SKU0254345
Unit Price:
$831.00
Availability:
KJLC will contact you.
Quantity:
Product Downloads
Product Downloads
Below is a list of available file downloads for this product.
21320-KA64 Manual
21320-KA64 Product Datasheet
21320-KA64 Dimension Drawing
21320-KA64 CAD File
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656

Specifications

Manufacturer VAT
Series 21.3
Pressure Torr
Min: 7.50×10-9 Torr
Max: 7500 Torr

mbar
1.00×10-8 mbar
bar
1.00 bar
Temperature Valve Body
≤150 ºC
Cycle
Life 		1,500,000
Actuator
Type 		Electromagnetic
Solenoid Kit
Included 		No
Position
Indicators 		No
Mounting
Orientation 		Any
Valve Body
Material 		Aluminum
Valve Seal
Material 		Fluorocarbon (FKM)
Solenoid Kit
Included 		No
Position
Indicators 		No
Bonnet
Seal Type 		Fluorocarbon (FKM)
Flange
Size 		KF10 (1.18 in / 29.97 mm OD)
Valve
Size 		DN 10 (3/8")
Conductance
(l/s) 		10
Weight
Lbs (kg) 		1.01 (0.46)
Contact Us - 21320-KA64 - VACUUM VENT VALVE, SERIES 213, DN10 (3/8") ISO-KF, ALUMINUM, 24V DC SOLENOID ELECTROMAGNETIC ACTUATOR
