21320-KA66 - VENT VALVE, AL, SERIES 21, DN10 ISO-KF FLANGES AND SINGLE ACTING 24V DC ELECTROMAGNETIC ACTUATOR WITH OPENING SPRING

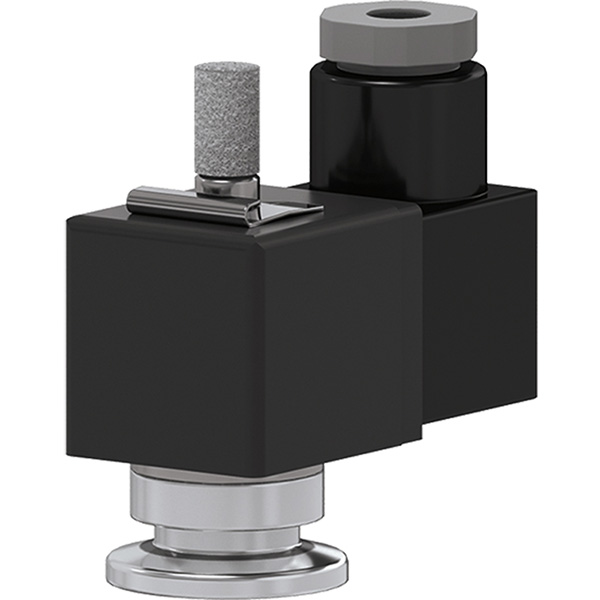

21320-KA66 VENT VALVE, AL, SERIES 21, DN10 ISO-KF FLANGES AND SINGLE ACTING 24V DC ELECTROMAGNETIC ACTUATOR WITH OPENING SPRING

SKU: SKU0288877

Unit Price:

$570.00

Availability:

Specifications

Manufacturer	VAT
Series	21.3
Pressure	Torr Min: 7.50×10^-9 Torr Max: 7500 Torr mbar 1.00×10^-8 mbar bar 1.00 bar
Temperature	Valve Body ≤50.0 ºC
Cycle Life	3,000,000
Actuator Type	Electromagnetic
Solenoid Kit Included	No
Position Indicators	No
Mounting Orientation	Any
Valve Body Material	Aluminum
Valve Seal Material	Fluorocarbon (FKM)
Solenoid Kit Included	No
Position Indicators	No
Flange Size	KF10 (1.18 in / 29.97 mm OD)
Valve Size	DN 10 (3/8")
Conductance (l/s)	10
Weight Lbs (kg)	0.35 (0.16)
