F0133X075NW enlarge image tool

F0133X075NW

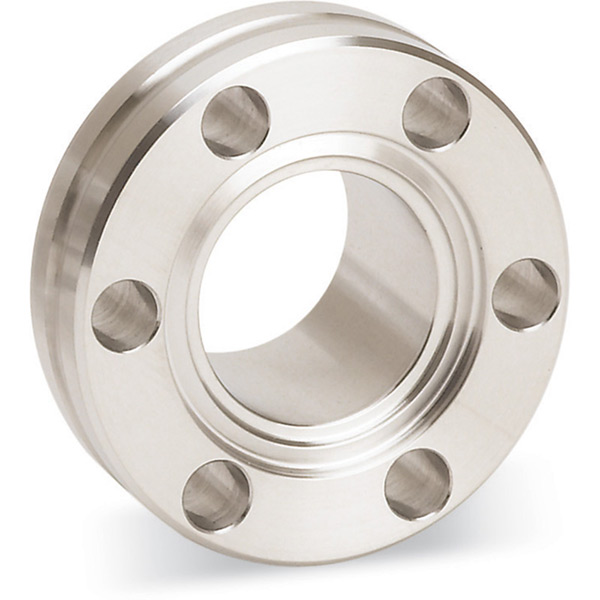

F0133X075NW FLANGE,UHV,SS,BORED,FXD,WELD NECK,1.33"OD,.62"BORE

SKU: SKU0123028
Unit Price:
$17.40
Availability:
In Stock
Quantity:
Product VacuCAD Files
Product VacuCAD Files

F0133X075NW

Corrosion Resistant Coatings
Corrosion Resistant Coatings
Learn more about corrosion and wear resistant coating options tailored to solve material compatibility problems in industries including semiconductor, oil and gas, and chemical processing.
Flanges and Components FAQ
Flanges and Components FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656

Specifications

All dimensions listed in the table below, unless otherwise stated, are in inches.

Flange Style Conflat (CF)
Flange Size/OD DN16CF (1.33 in / 33.78 mm OD)
Type Fixed Weldneck
Flange Material 304L SS
Nominal Tube OD 3/4
Nominal Tube OD (Metric) 19.05
Bore 0.63
Bore (Metric) 16.002
Thickness 0.30
Thickness (Metric) 7.620
Bolt Circle Dia. 1.062
Bolt Circle Dia. (Metric) 26.975
Bolt Hole Dia. 0.172
Bolt Hole Dia. (Metric) 4.369
# of Bolt Holes 6
Weldneck Dia. 0.750
Weldneck Dia. (Metric) 19.050
Setback 0.500
Setback (Metric) 12.700
Weld Ledge 0.06
Weld Ledge (Metric) 1.524
Tube Socket Dia. 0.670
Tube Socket Dia. (Metric) 17.018

Dimensional Drawings
Part number F0133X075NW drawing enlarge image tool

Accessories Table

More
Info		 Description For Per Package Note
VacuCADSM
Part Number Price Ready to Ship Add Item Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Description For Per Package Note
VacuCADSM
Part Number Price Ready to Ship Add Item Combine
Protective Cover, DN16CF (1.33" OD) Flange All 1.33" (DN16CF) Flanges 10 —
N/A
F0133CAP
$10.00
In Stock Add Item
Gasket, Copper, DN16CF (1.33" OD) Flange , 0.837" OD, 0.640" ID, (10) Per Package All 1.33" (DN16CF) Flanges 10 —
GA-0133View GA-0133 Specific Information
$26.35
KJLC will contact you
Add Item
Plate Nut & Bolt Set, Stainless Steel, DN16CF (1.33" OD) Flange, (24) 8-32 x 0.75" Long Socket Head Cap Screws & (12) 8-32 Plate Nuts 1.33" (DN16CF) Through-hole CF Flanges 12 —
N/A
PNB-0133
$41.60
KJLC will contact you
Add Item
Socket Head Cap Screws, Stainless Steel, (25) 8-32 x 0.50" Long Socket Head Cap Screws Tapped Hole Flanges 25 1
N/A
SBK832050S4-25
$13.50
In Stock
Add Item
Socket Head Cap Screw & Washer Set, Stainless Steel, (25) M4 x 16mm Socket Head Cap Screws & (25) Flat Washers Tapped Hole Flanges 25 —
N/A
SBKM4X16S4-25
$5.00
1-2 Weeks
Add Item
Socket Head Cap Screw & Nut Set, Stainless Steel, DN16CF (1.33" OD) Flange, (25) 8-32 x 0.75" Long Socket Head Cap Screws & (25) Hex Nuts Clearance Hole Flanges 25 —
N/A
SBS832075S4-25View SBS832075S4-25 Specific Information
$40.00
In Stock
Add Item
Socket Head Cap Screw, Nut & Washer Set, Stainless Steel, (25) M4 x 20mm Long Socket Head Cap Screws, (25) Hex Nuts, & (50) Flat Washers Clearance Hole Flanges 25 —
N/A
SBSM4X20S4-25
$11.90
In Stock
Add Item
Gasket Removal Tool, For All Conflat (CF) Flange Sizes All 1.33" (DN16CF) Flanges 1 —
N/A
VZGRT
$38.50
In Stock
Add Item
Thread Lubricant, 4 Ounce Tube All 1.33" (DN16CF) Flanges 1 —
N/A
VZTL-4OZ
$113.00
In Stock
Add Item
No items have been selected Include Main Part:  F0133X075NW

 Notes:
1.
This item is a socket head cap screw, not a hex head bolt.
How to Combine Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
