F0133X075RW

F0133X075RW

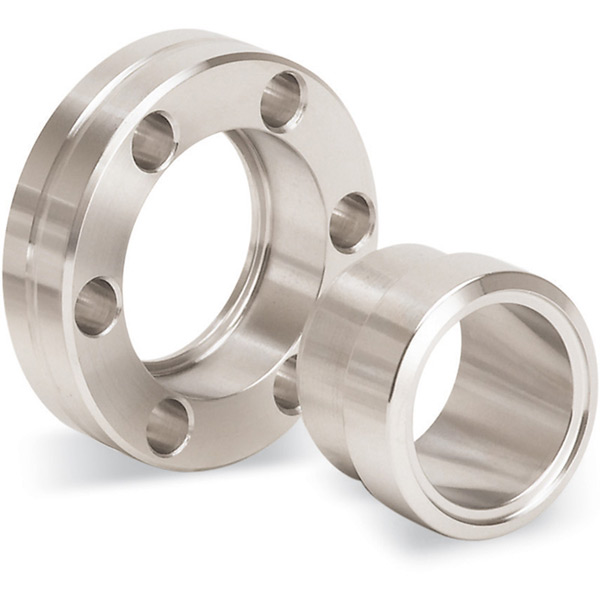

FLANGE,UHV,SS,BORED,ROT,WELD NECK,1.33"OD,.62"BORE

Unit Price:
$14.60
Availability:
In Stock
Quantity:
Product VacuCAD Files
Product VacuCAD Files

F0133X075RW

STP (Please Log In)
DXF (Please Log In)
Flanges and Components FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications

Flange Size/OD: DN16CF (1.33" OD)
Type : Rotatable Weldneck
Flange Material: 304L SS
Bore : 0.63
Bore (Metric): 16.002
Thickness : 0.30
Thickness (Metric): 7.620
Bolt Circle Dia.: 1.062
Bolt Circle Dia. (Metric): 26.975
Bolt Hole Dia.: 0.172
Bolt Hole Dia. (Metric): 4.369
# of Bolt Holes: 6
Weldneck Dia.: 0.750
Weldneck Dia. (Metric): 19.050
Setback : 0.500
Setback (Metric): 12.700
Weld Ledge: 0.06
Weld Ledge (Metric): 1.524
Tube Socket Dia.: 0.670
Tube Socket Dia. (Metric): 17.018

Dimensional Drawings

Accessories Table

Description For Per Package Manual
VacuCADSM
Part Number Price In Stock Add Item Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Description For Per Package Manual
VacuCADSM
Part Number Price In Stock Add Item Combine
Protective Cover, DN16CF (1.33" OD) Flange All 1-1/3" (DN16CF) Flanges 1
N/A
F0133CAP
$1.15 In Stock Add Item
Gasket, Copper, DN16CF (1.33" OD) Flange , 0.837" OD, 0.640" ID, (10) Per Package All 1-1/3" (DN16CF) Flanges 10
(please log in)
GA-0133
$21.05 In Stock Add Item
Gasket, Copper, Silver Plated, DN16CF (1.33" OD) Flange , 0.837" OD, 0.640" ID, (1) Per Package All 1-1/3" (DN16CF) Flanges 1
(please log in)
GA-0133NSP
$4.45 In Stock Add Item
Gasket, FKM, Flat, DN16CF (1.33" OD) Flange , 0.837" OD, 0.660" ID, (1) Per Package All 1-1/3" (DN16CF) Flanges 1
(please log in)
GA-0133V
$2.65 In Stock Add Item
Plate Nuts, Stainless Steel, DN16CF (1.33" OD) Flange, (24) 8-32 Plate Nuts Per Package 1.33"OD 24
N/A
PN-0133
$36.30 In Stock Add Item
Plate Nuts, Stainless Steel, DN16CF (1.33" OD) Flange, (24) M4 Plate Nuts Per Package 1.33"OD 24
N/A
PN-0133M
$39.20 In Stock Add Item
Plate Nut & Bolt Set, Stainless Steel, DN16CF (1.33" OD) Flange, (24) 8-32 x 0.75" Long Socket Head Cap Screws & (12) 8-32 Plate Nuts 1-1/3" (DN16CF) Through-hole CF Flanges 12
N/A
PNB-0133
$36.30 In Stock Add Item
Socket Head Cap Screws, Stainless Steel, (25) 8-32 x 0.50" Long Socket Head Cap Screws 1-1/3" (DN16CF) Tapped CF Flanges 25
N/A
SBK832050S4-25
$13.50 In Stock Add Item
Gasket Clips, For All Conflat (CF) Flange Sizes, (10) Per Package All 1-1/3" (DN16CF) Flanges 10 Download PDF
N/A
VGC0275S
P.O.R. In Stock Add Item
Gasket, Copper, Annealed, DN16CF (1.33" OD) Flange, (5) Per Package All 1-1/3" (DN16CF) Flanges 5
(please log in)
VZCUA19
$15.10 In Stock Add Item
Gasket Removal Tool, For All Conflat (CF) Flange Sizes All 1-1/3" (DN16CF) Flanges 1
N/A
VZGRT
$38.20 In Stock Add Item
Thread Lubricant, 4 Ounce Tube All 1-1/3" (DN16CF) Flanges 1
N/A
VZTL-4OZ
P.O.R. In Stock Add Item
Gasket, FKM, Molded, DN16CF (1.33" OD) Flange, 0.80" OD, 0.70" ID, (2) Per Package All 1-1/3" (DN16CF) Flanges 2
(please log in)
VZVIT19
P.O.R. In Stock Add Item
No items have been selected Include Main Part:  F0133X075RW
