F1200X000R

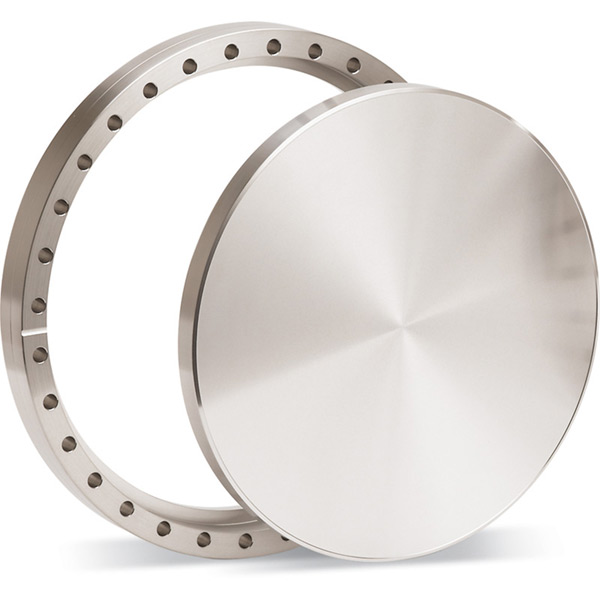

F1200X000R FLANGE,UHV,SS,BLANK,ROTATABLE, 12"OD

Unit Price:
$1,295.00
Availability:
In Stock
Quantity:
Product VacuCAD Files
Product VacuCAD Files

F1200X000R

STP (Please Log In)
DXF (Please Log In)
Flanges and Components FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656

Specifications

Flange Style Conflat (CF)
Flange Size/OD: DN250CF (12.00 in / 304.80 mm OD)
Type Rotatable
Flange Material 304L SS
Bore Blank
Bore (Metric) Blank
Thickness 1.02
Thickness (Metric) 25.908
Bolt Circle Dia. 11.180
Bolt Circle Dia. (Metric) 283.972
Bolt Hole Dia. 0.332
Bolt Hole Dia. (Metric) 8.433
# of Bolt Holes 32

Dimensional Drawings

Accessories Table

Description For Per Package Manual
VacuCADSM
Part Number Price In Stock Add Item Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Description For Per Package Manual
VacuCADSM
Part Number Price In Stock Add Item Combine
Gasket, Copper, DN250CF (12.00" OD) Flange, 10.743" OD x 10.007" ID, (1) Per Package All 12"(DN250) CF Flanges 1
(please log in)
GA-1200View GA-1200 Specific Information
$79.50
In Stock Add Item
Hex Bolt, Nut & Washer Set, Stainless Steel, (32) 5/16-24 x 2.50" Long Hex Bolts, (32) Hex Nuts, & (64) Flat Washers 12"(DN250) Through-hole CF Flanges 32
(please log in)
HBT31224250
$43.25
In Stock
Add Item
Gasket Clips, For All Conflat (CF) Flange Sizes, (10) Per Package All 12"(DN250) CF Flanges 10 Download PDF
N/A
VGC0275S
$106.00
In Stock
Add Item
Gasket Removal Tool, For All Conflat (CF) Flange Sizes All 12"(DN250) CF Flanges 1
N/A
VZGRT
$38.50
In Stock
Add Item
Thread Lubricant, 4 Ounce Tube All 12"(DN250) CF Flanges 1
N/A
VZTL-4OZ
$42.00
In Stock
Add Item
No items have been selected Include Main Part:  F1200X000R
