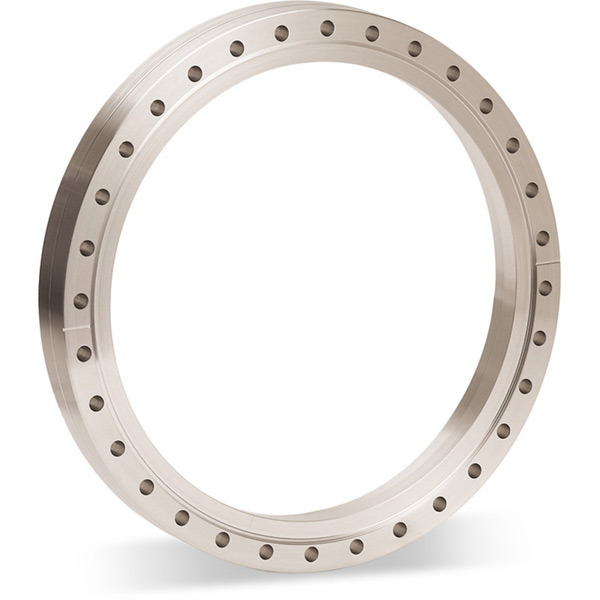

F1200X1000N enlarge image tool

F1200X1000N

F1200X1000N FLANGE,UHV,SS,BORED,FIXED, 12"OD,10"C-BORE

SKU: SKU0123674
Unit Price:
$746.35
Availability:
In Stock
Quantity:
Product VacuCAD Files
Product VacuCAD Files

F1200X1000N

Corrosion Resistant Coatings
Corrosion Resistant Coatings
Learn more about corrosion and wear resistant coating options tailored to solve material compatibility problems in industries including semiconductor, oil and gas, and chemical processing.
Flanges and Components FAQ
Flanges and Components FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656

Specifications

All dimensions listed in the table below, unless otherwise stated, are in inches.

Flange Style Conflat (CF)
Flange Size/OD DN250CF (12.00 in / 304.80 mm OD)
Type Fixed
Flange Material 304L SS
Nominal Tube OD 10
Nominal Tube OD (Metric) 254
Bore 9.88
Bore (Metric) 250.952
Counter Bore 10.020
Counter Bore (Metric) 254.508
Thickness 1.02
Thickness (Metric) 25.908
Bolt Circle Dia. 11.180
Bolt Circle Dia. (Metric) 283.972
Bolt Hole Dia. 0.332
Bolt Hole Dia. (Metric) 8.433
# of Bolt Holes 32
Setback 0.500
Setback (Metric) 12.700

Dimensional Drawings
Part number F1200X1000N drawing enlarge image tool

Accessories Table

More
Info		 Description For Per Package
VacuCADSM
Part Number Price Ready to Ship Add Item Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Description For Per Package
VacuCADSM
Part Number Price Ready to Ship Add Item Combine
Gasket, Copper, DN250CF (12.00" OD) Flange, 10.743" OD x 10.007" ID, (1) Per Package All 12"(DN250) CF Flanges 1
GA-1200View GA-1200 Specific Information
$79.50
In Stock Add Item
Hex Bolt & Washer Kit, Stainless Steel, (32) 5/16-24 x 1.75" Long Hex Bolts & (32) Flat Washers Tapped Hole Flanges 32
HBL31224175
$38.20
In Stock
Add Item
Hex Bolt & Washer Kit, Stainless Steel, (32) M8 x 45mm Long Hex Bolts & (32) Flat Washers Tapped Hole Flanges 32
N/A
HBLM8X45
P.O.R.
KJLC will contact you
Add Item
Hex Bolt, Nut & Washer Set, Stainless Steel, (32) 5/16-24 x 2.50" Long Hex Bolts, (32) Hex Nuts, & (64) Flat Washers Clearance Hole Flanges 32
HBT31224250View HBT31224250 Specific Information
$43.25
In Stock
Add Item
Hex Bolt, Nut & Washer Set, Stainless Steel, (32) M8 x 65mm Long Hex Bolts, (32) Hex Nuts, & (64) Flat Washers Clearance Hole Flanges 32
N/A
HBTM8X65
P.O.R.
KJLC will contact you
Add Item
Gasket Removal Tool, For All Conflat (CF) Flange Sizes All 12"(DN250) CF Flanges 1
N/A
VZGRT
$38.50
In Stock
Add Item
Thread Lubricant, 4 Ounce Tube All 12"(DN250) CF Flanges 1
N/A
VZTL-4OZ
$113.00
In Stock
Add Item
No items have been selected Include Main Part:  F1200X1000N
How to Combine Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
