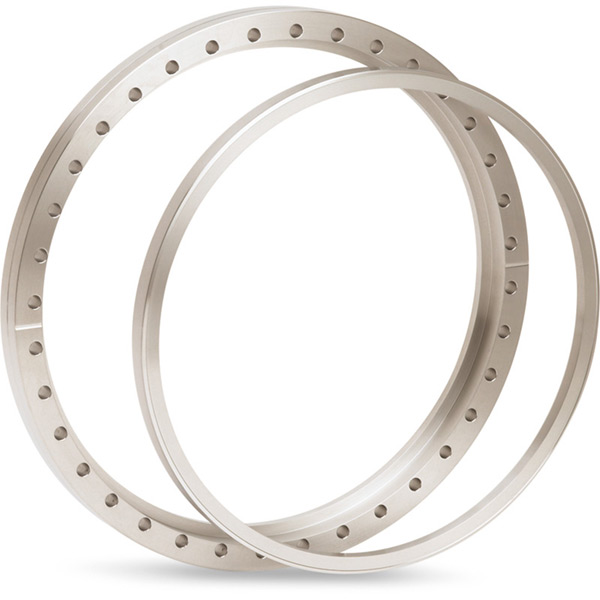

F1650X1400R enlarge image tool

F1650X1400R

F1650X1400R FLANGE,UHV,SS,BORED,ROT,16.5" OD,14"C-BORE

SKU: SKU0123745
Unit Price:
P.O.R.
Availability:
KJLC will contact you.
Quantity:
Product VacuCAD Files
Product VacuCAD Files

F1650X1400R

Corrosion Resistant Coatings
Corrosion Resistant Coatings
Learn more about corrosion and wear resistant coating options tailored to solve material compatibility problems in industries including semiconductor, oil and gas, and chemical processing.
Flanges and Components FAQ
Flanges and Components FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656

Specifications

All dimensions listed in the table below, unless otherwise stated, are in inches.

Flange Style Conflat (CF)
Flange Size/OD DN350CF (16.50 in / 419.10 mm OD)
Type Rotatable
Flange Material 304L SS
Nominal Tube OD 14
Nominal Tube OD (Metric) 356
Bore 13.63
Bore (Metric) 346.202
Counter Bore 14.020
Counter Bore (Metric) 356.108
Thickness 1.12
Thickness (Metric) 28.448
Bolt Circle Dia. 15.310
Bolt Circle Dia. (Metric) 388.874
Bolt Hole Dia. 0.413
Bolt Hole Dia. (Metric) 10.490
# of Bolt Holes 36
Setback 0.500
Setback (Metric) 12.700

Dimensional Drawings
Part number F1650X1400R drawing enlarge image tool

Accessories Table

More
Info		 Description For Per Package
VacuCADSM
Part Number Price Ready to Ship Add Item Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Description For Per Package
VacuCADSM
Part Number Price Ready to Ship Add Item Combine
Gasket, Copper, DN350CF (16.50" OD) Flange, 14.83" OD, 14.02" ID, (1) Per Package All 16" CF Flanges 1
GA-1650View GA-1650 Specific Information
$85.85
In Stock Add Item
Hex Bolt, Nut & Washer Set, Stainless Steel, (36) 3 /8-24 x 3.00" Long Hex Bolts, (36) Hex Nuts, & (72) Flat Washers Clearance Hole Flanges 36
HBT37524300View HBT37524300 Specific Information
$59.30
In Stock
Add Item
Gasket Removal Tool, For All Conflat (CF) Flange Sizes All 16" CF Flanges 1
N/A
VZGRT
$38.50
In Stock
Add Item
Thread Lubricant, 4 Ounce Tube All 16" CF Flanges 1
N/A
VZTL-4OZ
$113.00
In Stock
Add Item
No items have been selected Include Main Part:  F1650X1400R
How to Combine Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
