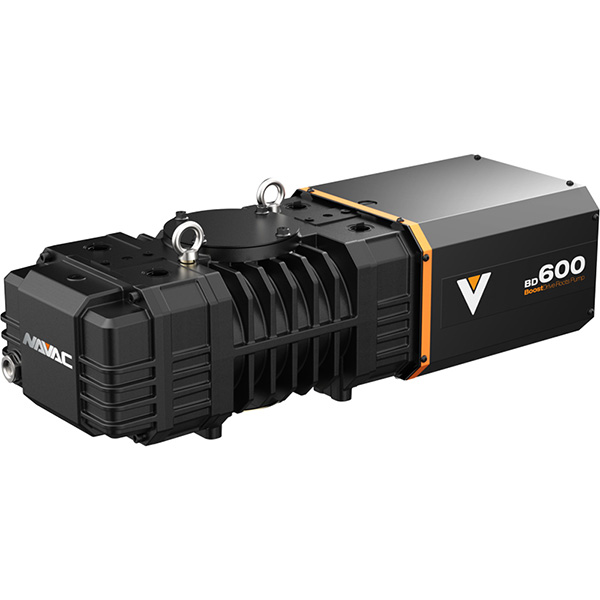

BD600 - PUMP, ROOTS BLOWER NAVAC BD600 ISO100-F INLET, 424CFM / 600M^3/HR, 460V/60HZ, THREE PHASE, AIR COOLING enlarge image tool
BD600 - PUMP, ROOTS BLOWER NAVAC BD600 ISO100-F INLET, 424CFM / 600M^3/HR, 460V/60HZ, THREE PHASE, AIR COOLING BD600 - PUMP, ROOTS BLOWER NAVAC BD600 ISO100-F INLET, 424CFM / 600M^3/HR, 460V/60HZ, THREE PHASE, AIR COOLING 1 BD600 - PUMP, ROOTS BLOWER NAVAC BD600 ISO100-F INLET, 424CFM / 600M^3/HR, 460V/60HZ, THREE PHASE, AIR COOLING 2 BD600 - PUMP, ROOTS BLOWER NAVAC BD600 ISO100-F INLET, 424CFM / 600M^3/HR, 460V/60HZ, THREE PHASE, AIR COOLING 3

BD600 PUMP, ROOTS BLOWER NAVAC BD600 ISO100-F INLET, 424CFM / 600M^3/HR, 460V/60HZ, THREE PHASE, AIR COOLING

SKU: SKU0405725
Unit Price:
$12,999.00
Availability:
KJLC will contact you.
Quantity:

 Notes:
1.
Roots blowers are typically connected to a separate backing back as they add additional pumping speed and another compression stage. If you need help cross-referencing your current package to a NAVAC package or if you are starting from scratch, please reach out to pumps@lesker.com
BD600 Series Manual
BD600 Series Manual
For a download of the product manual, click here.
Vacuum Pump Repair & Services
Vacuum Pump Repair & Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Pumps FAQ
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656

Specifications

Manufacturer Navac
Model BD600
Pumping Speeds
50 (Hz)
353 CFM
600 m3/hr
60 (Hz)
424 CFM
721 m3/hr
Cooling Method(s) Method
Convection
Motor Power HP 2.00
Motor Power kW 1.50
Inlet Flange DN63CF (4.50" OD)
Exhaust Flange DN63
Noise db(A) 63.0
Weight Lbs 479
Weight kg 218
Dimensions in. (W/D/H) 11.2 x 30.7 x 8.50
Dimensions mm. (W/D/H) 284 x 779 x 215
Lubrication Type Dry
Dimensional Drawings
Part number BD600 drawing enlarge image tool
