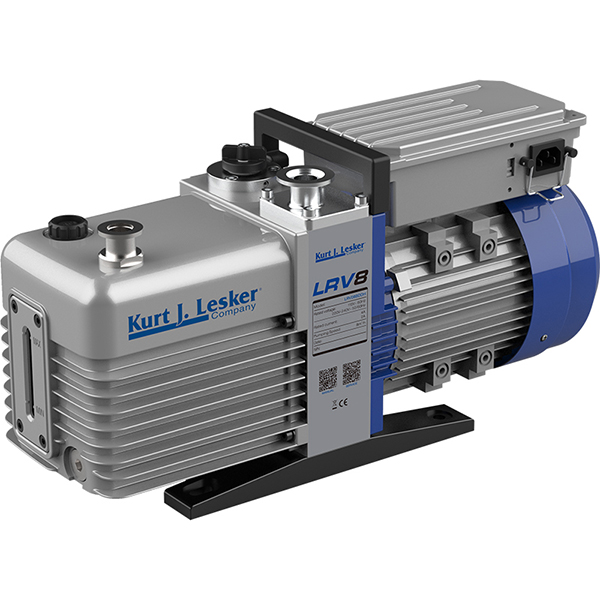

LRV08BDDH ROTARY VANE PUMP, KJLC LRV8, KF16 INLET FLANGE, 5.56CFM / 8M^3/HR, 120/240 VAC, 50/60HZ SINGLE PHASE

SKU: SKU0421702

Unit Price:

$2,650.00

Availability:

Notes:

A single charge of hydrocarbon oil is included with the purchase of a hydrocarbon prepped pump.

PFPE prepped pumps do not include oil; oil must be purchased separately.

Power cord is not included and will need to be purchased separately based on regional plug type.

Pumps that are 3-phase include flying leads attached to the motor. The end user is responsible for wiring the pump.

Specifications

Manufacturer	KJLC
Model	LRV8
Pumping Speeds	50 (Hz) 4.70 CFM 8.00 m³/hr 60 (Hz) 5.60 CFM 9.60 m³/hr
Ultimate Pressure	Total With Gas Ballast 1.00×10^-2 mbar 7.50×10^-2 Torr Total Without Gas Ballast 5.00×10^-3 mbar 3.80×10^-3 Torr
Cooling Method(s)	Method Convection
Motor Power HP	0.29
Motor Power kW	0.37
Inlet Flange	KF16
Exhaust Flange	KF16
Oil Capacity Quarts *Unless otherwise noted	1.00
Oil Capacity Liters *Unless otherwise noted	1.00
Noise db(A)	52.0
Weight Lbs	46.3
Weight kg	21.0
Dimensions in. (W/D/H)	5.60 x 17.5 x 8.50
Dimensions mm. (W/D/H)	143 x 445 x 216
Lubrication Type	Wet
Vacuum Range	Medium 1-10^-3 Torr (1-10^-3mbar)

Dimensional Drawings

Charts

More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
	Hardware Kit for KF16 flanges, includes KF16 O-Ring & KF16 Clamp	Hardware	QF16-HDKIT	$15.45	KJLC will contact you		Combine
	KJLC Hydrocarbon Oil for LRV4 & LRV8	Hydrocarbon Oil	KJLSS19Q1	$33.00			Combine
	Pump Filter, Exhaust, QF16	Exhaust Filter	PFEGL915QF16	$196.44			Combine
	Pump Filter, Intake, QF16 Ports, 18CFM Capacity, 5 Micron Polyester Element	Inlet Filter	PFI825KF16B	$227.00			Combine
	Repair Kit for LRV8	Repair Kit	LRV8-KIT	P.O.R.	KJLC will contact you		Combine
	Replacement Element, 5 Micron Polyester Media, for PFI843xxx filters	Replacement Element	PFI843	$15.20			Combine
	Single Phase EU IEC Power Cable	Power Cable	KJLC-RVMCEU-1	$45.00			Combine
	Single Phase UK IEC Power Cable	Power Cable	KJLC-RVMCUK-1	P.O.R.	KJLC will contact you		Combine
	Single Phase US IEC Power Cable	Power Cable	KJLC-RVMCUS	$33.00			Combine
