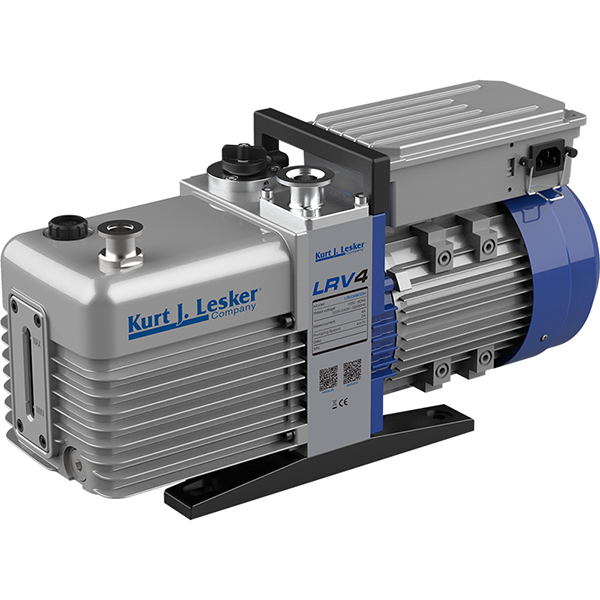

Representative Image

KJLC LRV Dual Stage Rotary Vane Pumps

The KJLC LRV Series Dual-Stage Rotary Vane Vacuum Pumps provide reliable pumping performance, effective vapor handling, and long service life for laboratory, industrial, and vacuum process applications. The series offers dependable operation and a competitive cost of ownership.

Each pump includes a proprietary corrosion-resistant internal coating to help protect components from process contaminants and extend service life in demanding environments. The dual-stage rotary vane design delivers deep ultimate vacuum and stable performance across the operating range.

Standard features include a two-position gas ballast valve for handling condensable vapors, an anti-suckback mechanism that helps protect the vacuum system during power loss and forced oil circulation for lubrication and heat dissipation. Heavy-duty construction and precision-machined components also help reduce wear and maintenance needs.

With a practical balance of pumping speed, ultimate pressure, vapor tolerance, and durability, the LRV Series is well suited for research, analytical, coating, semiconductor, and industrial vacuum systems.

Features

Dual-stage Oil-sealed Rotary Vane Vacuum Pump
Proprietary coating for additional corrosion resistance
Two Shift Adjustable Gas Ballast Valve
Anti-suckback Design
Forced Oil Circulation System
Hydrocarbon or PFPE prepped options

Applications

OEMs
R&D
Universities
Scientific Instruments
Optical Coaters
Freeze Drying

Dimensional Drawings

KJLC LRV Dual Stage Rotary Vane Pumps drawing

Charts

Specifications Table

Pump Model	LRV4	LRV8	LRV16	LRV30	LRV48	LRV65
Pumping Speeds	50 (Hz) 2.30 CFM 4.00 m³/hr 60 (Hz) 2.80 CFM 4.80 m³/hr	50 (Hz) 4.70 CFM 8.00 m³/hr 60 (Hz) 5.60 CFM 9.60 m³/hr	50 (Hz) 9.40 CFM 16.0 m³/hr 60 (Hz) 11.0 CFM 19.2 m³/hr	50 (Hz) 18.0 CFM 30.0 m³/hr 60 (Hz) 21.0 CFM 36.0 m³/hr	50 (Hz) 28.0 CFM 48.0 m³/hr 60 (Hz) 34.0 CFM 57.6 m³/hr	50 (Hz) 65.0 CFM 38.0 m³/hr 60 (Hz) 46.0 CFM 78.0 m³/hr
Ultimate Pressure	Total With Gas Ballast 1.00×10^-2 mbar 7.50×10^-3 Torr Total Without Gas Ballast 5.00×10^-3 mbar 3.80×10^-3 Torr	Total With Gas Ballast 1.00×10^-2 mbar 7.50×10^-2 Torr Total Without Gas Ballast 5.00×10^-3 mbar 3.80×10^-3 Torr	Total With Gas Ballast 1.00×10^-2 mbar 7.50×10^-3 Torr Total Without Gas Ballast 2.00×10^-3 - 5.00×10^-3 mbar 3.80×10^-3 Torr	Total With Gas Ballast 1.00×10^-2 mbar 7.50×10^-3 Torr Total Without Gas Ballast 5.00×10^-3 mbar 3.80×10^-3 Torr	Total With Gas Ballast 1.00×10^-2 mbar 7.50×10^-3 Torr Total Without Gas Ballast 5.00×10^-3 mbar 3.80×10^-3 Torr	Total With Gas Ballast 1.00×10^-2 mbar 7.50×10^-3 Torr Total Without Gas Ballast 5.00×10^-3 mbar 3.80×10^-3 Torr
Cooling Method(s)	Method Convection	Method Convection	Method Convection	Method Convection	Method Convection	Method Convection
Motor Power HP (kW)	0.29 (0.37)	0.29 (0.37)	1.00 (0.75)	1.47 (1.10)	2.10 (1.50)	2.20 (2.20)
Inlet Flange	KF16	KF16	KF25	KF25	KF40	KF40
Exhaust Flange	KF16	KF16	KF25	KF25	KF40	KF40
Oil Capacity Quarts (Liters) *Unless otherwise noted	1.00 (1.00)	1.00 (1.00)	1.60 (1.50)	2.12 (2.00)	4.75 (1.00)	4.75 (4.50)
Noise db(A)	52.0	52.0	55.0	58.0	62.0	62.0
Weight Lbs (kg)	41.8 (19.0)	46.3 (21.0)	66.1 (30.0)	94.8 (43.0)	136 (19.0)	143 (65.0)
Dimensions in. (mm.) (W/D/H)	5.60 x 17.5 x 8.50 (143 x 445 x 216 )	5.60 x 17.5 x 8.50 (143 x 445 x 216 )	7.40 x 21.7 x 10.8 (188 x 552 x 275 )	7.40 x 22.3 x 10.8 (188 x 567 x 275 )	9.20 x 28.7 x 14.0 (234 x 729 x 356 )	9.20 x 28.7 x 14.0 (234 x 729 x 356 )
Lubrication Type	Wet	Wet	Wet	Wet	Wet	Wet
Technology Type	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive	Rotary Vane - Direct Drive

X CLOSE

Notes:

A single charge of hydrocarbon oil is included with the purchase of a hydrocarbon prepped pump.
PFPE prepped pumps do not include oil; oil must be purchased separately.
Power cord is not included and will need to be purchased separately based on regional plug type.
Pumps that are 3-phase include flying leads attached to the motor. The end user is responsible for wiring the pump.

Ordering Table

X CLOSE

More Info	Pump Model	Inlet Flange	Voltage & Phases	Manual	Description	Part Number	Price	Ready to Ship	Add To Cart	Accessories
More Info	Pump Model	Inlet Flange	Voltage & Phases	Manual	Description	Part Number	Price	Ready to Ship	Add To Cart	Accessories
	LRV4	KF16	115/220-240 VAC, 50/60 HZ SINGLE PHASE		ROTARY VANE PUMP, KJLC LRV4, KF16 INLET FLANGE, 2.82CFM / 4M^3/HR, 120/240 VAC, 50/60HZ SINGLE PHASE	LRV04BDDH	$1,850.00
	LRV8	KF16	115/220-240 VAC, 50/60 HZ SINGLE PHASE		ROTARY VANE PUMP, KJLC LRV8, KF16 INLET FLANGE, 5.56CFM / 8M^3/HR, 120/240 VAC, 50/60HZ SINGLE PHASE	LRV08BDDH	$2,650.00
	LRV16	KF25	115VAC, 60 HZ SINGLE PHASE		ROTARY VANE PUMP, KJLC LRV16, KF25 INLET FLANGE, 11.3CFM / 16M^3/HR, 120 VAC, 60HZ SINGLE PHASE	LRV16C16H	$3,350.00
	LRV30	KF25	115VAC, 60 HZ SINGLE PHASE		ROTARY VANE PUMP, KJLC LRV30, KF25 INLET FLANGE, 21.2CFM / 30M^3/HR, 120 VAC, 60HZ SINGLE PHASE	LRV30C16H	$5,500.00
	LRV48	KF40	Three Phase, 200-220/380-415V @ 50 Hz, 200-230/460V @ 60 Hz		ROTARY VANE PUMP, KJLC LRV48, KF40 INLET FLANGE, 34CFM / 48M^3/HR, 230/480 VAC, 50/60HZ 3PHASE	LRV48D3DH	$7,600.00
	LRV65	KF40	Three Phase, 200-220/380-415V @ 50 Hz, 200-230/460V @ 60 Hz		ROTARY VANE PUMP, KJLC LRV65, KF40 INLET FLANGE, 46CFM / 65M^3/HR, 230/480 VAC, 50/60HZ 3PHASE	LRV65D3DH	$9,575.00
