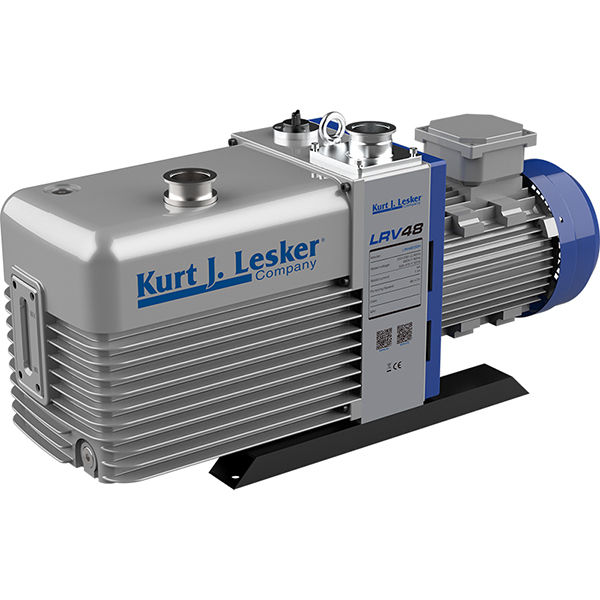

LRV48D3DH ROTARY VANE PUMP, KJLC LRV48, KF40 INLET FLANGE, 34CFM / 48M^3/HR, 230/480 VAC, 50/60HZ 3PHASE

SKU: SKU0421712

Unit Price:

$7,600.00

Availability:

Notes:

A single charge of hydrocarbon oil is included with the purchase of a hydrocarbon prepped pump.

PFPE prepped pumps do not include oil; oil must be purchased separately.

Power cord is not included and will need to be purchased separately based on regional plug type.

Pumps that are 3-phase include flying leads attached to the motor. The end user is responsible for wiring the pump.

Specifications

Manufacturer	KJLC
Model	LRV48
Pumping Speeds	50 (Hz) 28.0 CFM 48.0 m³/hr 60 (Hz) 34.0 CFM 57.6 m³/hr
Ultimate Pressure	Total With Gas Ballast 1.00×10^-2 mbar 7.50×10^-3 Torr Total Without Gas Ballast 5.00×10^-3 mbar 3.80×10^-3 Torr
Cooling Method(s)	Method Convection
Motor Power HP	2.10
Motor Power kW	1.50
Inlet Flange	KF40
Exhaust Flange	KF40
Oil Capacity Quarts *Unless otherwise noted	4.75
Oil Capacity Liters *Unless otherwise noted	1.00
Noise db(A)	62.0
Weight Lbs	136
Weight kg	19.0
Dimensions in. (W/D/H)	9.20 x 28.7 x 14.0
Dimensions mm. (W/D/H)	234 x 729 x 356
Lubrication Type	Wet
Vacuum Range	Medium 1-10^-3 Torr (1-10^-3mbar)

Dimensional Drawings

Charts

More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
	Hardware Kit for KF40 flanges, includes KF40 O-Ring & KF40 Clamp	Hardware	QF40-HDKIT	$26.05	KJLC will contact you		Combine
	KJLC Hydrocarbon Oil for LRV16, LRV24, LRV30, LRV48 & LRV65	Hydrocarbon Oil	KJLSS70Q1	$33.00			Combine
	Pump Filter, Exhaust, QF40	Exhaust Filter	PFEFG24QF40	$353.00	1-2 Weeks		Combine
	Pump Filter, Intake, 80CFM Capacity, 5 Micron Polyester Element, QF40 Flanges, Black Housing	Inlet Filter	PFI849KF40B	$370.00			Combine
	Repair Kit for LRV48 & LRV65	Repair Kit	LRV48-65KIT	P.O.R.	KJLC will contact you		Combine
	Replacement Element, 5 Micron Polyester Media, for PFI849xxx filters	Replacement Element	PFI849	$24.60	1-2 Weeks		Combine

No items have been selected Include Main Part: LRV48D3DH
