SD4I - NAVAC SD4I SHIELDDRIVE ROTARY VANE PUMP WITH BUILT IN OIL MIST FILTER AND OIL CHANGE BOTTLE, MAG-COUPLED, KF25 INLET FLANGE, 1.5CFM / 4M^3/HR, 110 VAC / 60 HZ SINGLE PHASE, DC MOTOR, ONE CHARGE OF HYDROCARBON OIL INCLUDED, US POWER CABLE INCLUDED enlarge image tool
SD4I - NAVAC SD4I SHIELDDRIVE ROTARY VANE PUMP WITH BUILT IN OIL MIST FILTER AND OIL CHANGE BOTTLE, MAG-COUPLED, KF25 INLET FLANGE, 1.5CFM / 4M^3/HR, 110 VAC / 60 HZ SINGLE PHASE, DC MOTOR, ONE CHARGE OF HYDROCARBON OIL INCLUDED, US POWER CABLE INCLUDED SD4I - NAVAC SD4I SHIELDDRIVE ROTARY VANE PUMP WITH BUILT IN OIL MIST FILTER AND OIL CHANGE BOTTLE, MAG-COUPLED, KF25 INLET FLANGE, 1.5CFM / 4M^3/HR, 110 VAC / 60 HZ SINGLE PHASE, DC MOTOR, ONE CHARGE OF HYDROCARBON OIL INCLUDED, US POWER CABLE INCLUDED 1 SD4I - NAVAC SD4I SHIELDDRIVE ROTARY VANE PUMP WITH BUILT IN OIL MIST FILTER AND OIL CHANGE BOTTLE, MAG-COUPLED, KF25 INLET FLANGE, 1.5CFM / 4M^3/HR, 110 VAC / 60 HZ SINGLE PHASE, DC MOTOR, ONE CHARGE OF HYDROCARBON OIL INCLUDED, US POWER CABLE INCLUDED 2 SD4I - NAVAC SD4I SHIELDDRIVE ROTARY VANE PUMP WITH BUILT IN OIL MIST FILTER AND OIL CHANGE BOTTLE, MAG-COUPLED, KF25 INLET FLANGE, 1.5CFM / 4M^3/HR, 110 VAC / 60 HZ SINGLE PHASE, DC MOTOR, ONE CHARGE OF HYDROCARBON OIL INCLUDED, US POWER CABLE INCLUDED 3

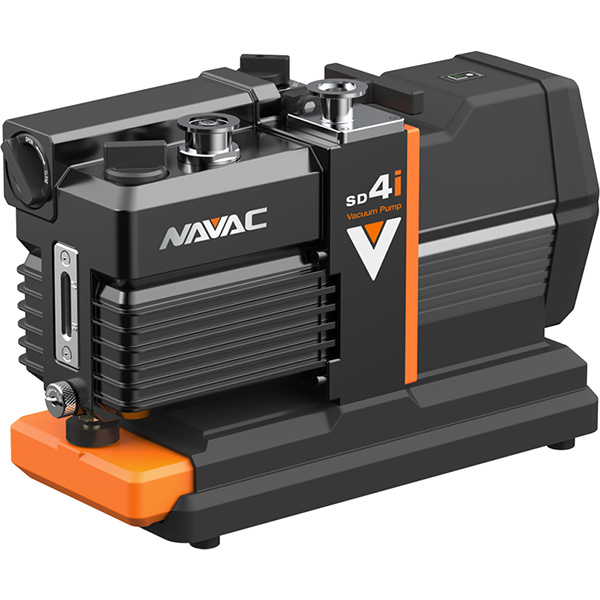

SD4I NAVAC SD4I SHIELDDRIVE ROTARY VANE PUMP WITH BUILT IN OIL MIST FILTER AND OIL CHANGE BOTTLE, MAG-COUPLED, KF25 INLET FLANGE, 1.5CFM / 4M^3/HR, 110 VAC / 60 HZ SINGLE PHASE, DC MOTOR, ONE CHARGE OF HYDROCARBON OIL INCLUDED, US POWER CABLE INCLUDED

SKU: SKU0425985
Unit Price:
$4,950.00
Availability:
In Stock
Quantity:

 Notes:
1.
These pumps are not suitable for liquids or dust-laden gases.
SD4i Series Manual
SD4i Series Manual
For a download of the product manual, click here.
Vacuum Pump Repair & Services
Vacuum Pump Repair & Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Pumps FAQ
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656

Specifications

Manufacturer Navac
Model SD4i
Pumping Speeds
Ultimate Pressure
Total With Gas Ballast
3.00×10-2 mbar
2.20×10-2 Torr
Total Without Gas Ballast
2.00×10-3 mbar
1.50×10-3 Torr
Cooling Method(s) Method
Forced Air
Motor Power HP 0.34
Motor Power kW 0.25
Inlet Flange KF25
Exhaust Flange KF25
Oil Capacity Quarts
*Unless otherwise noted		 0.80
Oil Capacity Liters
*Unless otherwise noted 		0.80
Noise db(A) 50.0
Compression Stages 2
Weight Lbs 36.3
Weight kg 16.5
Dimensions in. (W/D/H) 6.62 x 16.7 x 11.0
Dimensions mm. (W/D/H) 168 x 424 x 279
Lubrication Type Wet
Vacuum Range Medium 1-10-3 Torr (1-10-3mbar)
Dimensional Drawings
Part number SD4I drawing enlarge image tool
