A36604940

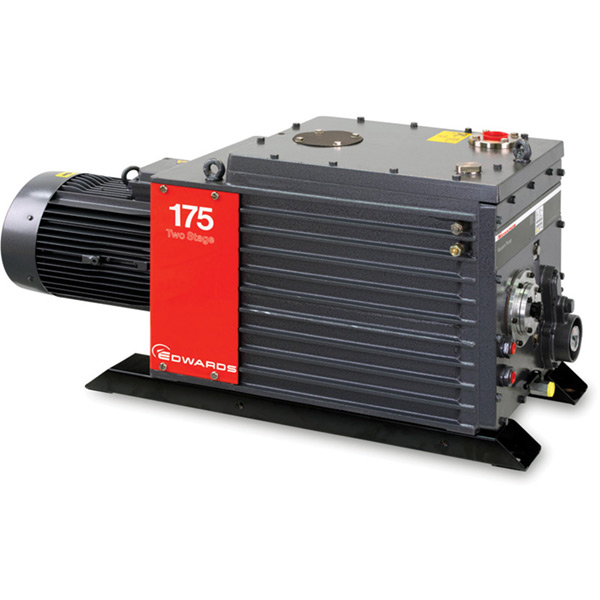

PUMP, MECH, E2M175, HC IE3 EU/US 50/60HZ, 380-400V 50HZ, 230/460V 60HZ, INLET CONNECTION: ISO63, OUTLET CONNECTION: ISO40

Unit Price:
P.O.R.
Availability:
KJLC will contact you
Quantity:

 Notes:
1.
ATEX versions available; please call or visit our website for more information.
2.
One charge of hydrocarbon oil will be provided with each pump.
3.
PFPE prepared and Azide resistant models are available.
E2M175 Series Manual
For a download of the product manual, click here.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications

Manufacturer Edwards
Model E2M175
Pumping Speeds
50 (Hz)
94.2 CFM
2666 L/min
44.4 L/s
160 m3/hr
60 (Hz)
115 CFM
3266 L/min
54.4 L/s
196 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)
2400 g/hr
Ultimate Pressure
Partial With Gas Ballast
5.00 x 10-3 hPA
5.00 x 10-3 mbar
5.00 x 10-1 Pa
3.80 x 10-3 Torr
Partial Without Gas Ballast
1.00 x 10-3 hPA
1.00 x 10-3 mbar
1.00 x 10-1 Pa
7.50 x 10-4 Torr
Total With Gas Ballast
5.00 x 10-3 hPA
5.00 x 10-3 mbar
5.00 x 10-1 Pa
3.75 x 10-3 Torr
Total Without Gas Ballast
1.00 x 10-3 hPA
1.00 x 10-3 mbar
1.00 x 10-1 Pa
7.50 x 10-4 Torr
Cooling Method(s) Method
Convection
Motor Power HP 8.72
Motor Power kW 6.50
Inlet Flange ISO63-F
Exhaust Flange KF40
Oil Type(s) Hydrocarbon Oil
Part: KJLSS19G5
Oil Capacity Quarts
*Unless otherwise noted
21.0
Oil Capacity Liters
*Unless otherwise noted
20.0
Noise db(A) 75.0
Compression Stages 2
Series Standard
Weight Lbs 449
Weight kg 204
Dimensions in. 36.9 x 15.9 x 20.9
Dimensions mm. 938 x 404 x 532
Lubrication Type Wet
Vacuum Range Coarse Vacuum (760 - 1 Torr)
Technology Type Rotary Vane
Dimensional Drawings
Charts

Accessories Table

For Pump Model(s) Description Accessory Type Part Number Price In Stock Add To Cart Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
For Pump Model(s) Description Accessory Type Part Number Price In Stock Add To Cart Combine
All EM Series
Pumps
Centering Ring, SS, QF40, FKM
Hardware
QF40-150-SRV
$13.50
In Stock Add Item
All EM Series
Pumps
Clamp for KF50 Flange
Hardware
QF50-200-C
P.O.R.
In Stock
Add Item
All EM Series
Pumps
Clamp, Aluminum, QF40, Cast 1-1/2"
Hardware
QF40-150-C
P.O.R.
In Stock
Add Item
All EM Series
Pumps
Edwards ISO40 Bolted Flange to KF50 Adapter
Hardware
C10005080
P.O.R.
Contact KJLC for Availability
Add Item
All EM Series
Pumps
Edwards ISO40 bolted flange to ISO63 Adapter
Hardware
ED-A1516
P.O.R.
Contact KJLC for Availability
Add Item
E2M175
E1M175
E2M275
E1M275
Edwards MF300 Oil Mist Eliminator
Exhaust Accessory
A46204000
P.O.R.
Contact KJLC for Availability
Add Item
All EM Series
Pumps
Fluorocarbon Centering Ring for KF50 Flange
Hardware
QF50-200-SRV
$15.55
In Stock
Add Item
All EM Series Pumps KJLC 300 Convection Enhanced Pirani, KF16
Gauge
KJL300806
$540.00
Contact KJLC for Availability
Add Item
All EM Series
Pumps
KJLSS19 Hydrocarbon Oil (1 Gallon)
Hydrocarbon Oil
KJLSS19G1
$47.00
In Stock
Add Item
All EM Series
Pumps
KJLSS19 Hydrocarbon Oil (1 quart)
Hydrocarbon Oil
KJLSS19Q1
$18.00
In Stock
Add Item
All EM Series Pumps Power Supply, KJLC 275i or 300, US Plug End
Power Cable
KJLPS401A
$70.00
In Stock
Add Item
No items have been selected Include Main Part:  A36604940
