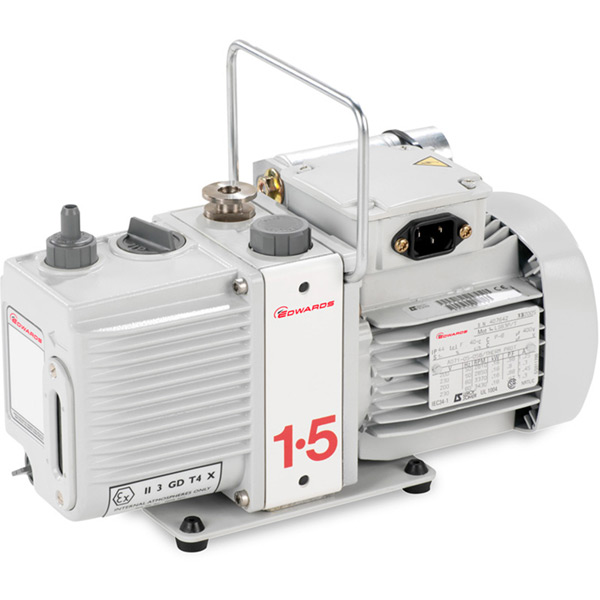

A37132902 - PUMP,ROTARY VANE,E2M1.5,100-120V,50/60HZ, enlarge image tool

A37132902
PUMP,ROTARY VANE,E2M1.5,100-120V,50/60HZ,

Unit Price:
$3,062.00
Availability:
KJLC will contact you
Quantity:

 Notes:
1.
ATEX versions available; please call or visit our website for more information.
2.
Hydrocarbon prepared pumps will be shipped with one charge of oil.
3.
PFPE prepared pumps will require purchase of PFPE oil separately.
4.
Power cord is not included and will need to be purchased separately based on regional plug type.
E2M1.5 Series Manual
E2M1.5 Series Manual
For a download of the product manual, click here.
Pumps FAQ
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656

Specifications

Manufacturer Edwards Vacuum
Model E2M1.5
Pumping Speeds
50 (Hz)
0.94 CFM
26.7 L/min
0.44 L/s
1.60 m3/hr
60 (Hz)
1.18 CFM
33.3 L/min
0.56 L/s
2.00 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)		 16.0 g/hr
Ultimate Pressure
Partial With Gas Ballast
2.50 x 10-2 hPA
2.50 x 10-2 mbar
2.50 Pa
1.88 x 10-2 Torr
Partial Without Gas Ballast
5.00 x 10-4 hPA
5.00 x 10-4 mbar
5.00 x 10-2 Pa
3.75 x 10-4 Torr
Total Without Gas Ballast
1.50 x 10-3 hPA
1.50 x 10-3 mbar
1.50 x 10-1 Pa
1.13 x 10-3 Torr
Cooling Method(s) Method
Convection
Motor Power HP 0.21
Motor Power kW 0.16
Inlet Flange KF10
Exhaust Flange 11mm
Oil Type(s) Hydrocarbon Oil
Part: KJLSS19Q1
Oil Capacity Quarts
*Unless otherwise noted		 0.34
Oil Capacity Liters
*Unless otherwise noted 		0.32
Noise db(A) 54.0
Compression Stages 2
Series Standard
Weight Lbs 22.0
Weight kg 10.0
Dimensions in. 12.7 x 5.59 x 9.41
Dimensions mm. 323 x 142 x 239
Lubrication Type Wet
Vacuum Range Medium Vacuum (1 - 10-3 Torr)
Technology Type Rotary Vane
Dimensional Drawings
Part number A37132902 drawing enlarge image tool
Charts
Part number A37132902 chart enlarge image tool

Accessories Table

Description For Pump Model(s) Accessory Type Part Number Price In Stock Add To Cart Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Description For Pump Model(s) Accessory Type Part Number Price In Stock Add To Cart Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Clamp, Aluminum, QF16, Cast 1/2" & 3/4" E2M0.7
E2M1.5
Hardware
QF16-075-C
$6.95
In Stock Add Item
Clamping Kit, For QF10 Flange, Including Aluminum Clamp and FKM Centering Ring E2M0.7, E2M1.5
KF Hardware Kit
QF10-HDKIT
$14.95
Contact KJLC for Availability
Add Item
Edwards EMF3 Oil Mist Eliminator E2M0.7
E2M1.5
Exhaust Accessory
A46220000
$351.22
In Stock
Add Item
Edwards Repair Kit for E2M0.7 and E2M1.5 E2M0.7
E2M1.5
Repair Kit
A37101131
$256.00
Contact KJLC for Availability
Add Item
Fluorocarbon Centering Ring for KF10 E2M0.7
E2M1.5
Hardware
QF10-050-SRV
$7.75
In Stock
Add Item
KJLC 300 Convection Enhanced Pirani, KF16 All EM Series Pumps
Gauge
KJL300806
$795.00
Contact KJLC for Availability
Add Item
KJLSS19 Hydrocarbon Oil (1 Gallon) All EM Series
Pumps
Hydrocarbon Oil
KJLSS19G1
$57.00
In Stock
Add Item
KJLSS19 Hydrocarbon Oil (1 quart) All EM Series
Pumps
Hydrocarbon Oil
KJLSS19Q1
$22.00
In Stock
Add Item
Mains Cable with CEE 7.7 Plug (Northern Europe) for single phase pumps, 2m length E2M0.7, E2M1.5
Mains Cable
A50506000
P.O.R.
Contact KJLC for Availability
Add Item
Mains Cable with NEMA 5-15 (N.A. / Japan) Plug for single phase, 2m length E2M0.7, E2M1.5
Mains Cable
A50507000
$56.59
In Stock
Add Item
Mains Cable with Type G (UK) Plug for single phase pumps, 2m length E2M0.7, E2M1.5
Mains Cable
A50505000
$52.43
Contact KJLC for Availability
Add Item
Mains Cable with flying leads for single phase pumps, 2m length E2M0.7, E2M1.5
Mains Cable
A50508000
$52.00
Contact KJLC for Availability
Add Item
Power Supply, KJLC 275i or 300, US Plug End All EM Series Pumps
Gauge Power Cable
KJLPS401A
$96.00
Contact KJLC for Availability
Add Item
Replacement Vane Kit for E2M0.7 and E2M1.5 E2M0.7
E2M1.5
Repair Kit
A37101132
$248.00
Contact KJLC for Availability
Add Item
