A37317984

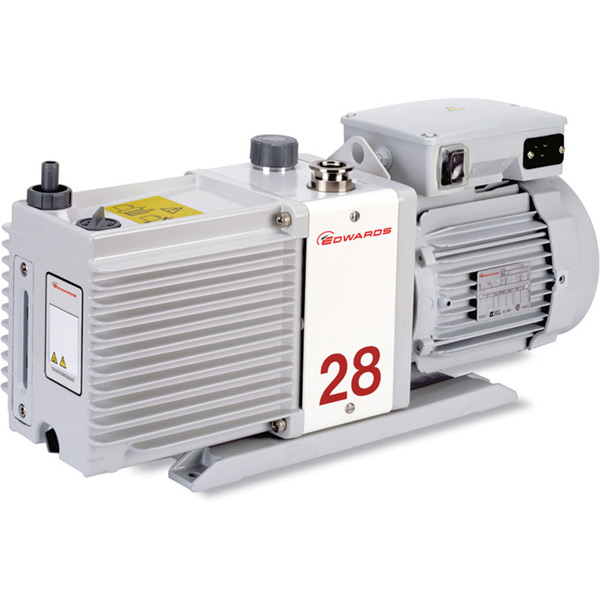

PUMP, ROTARY VANE,E2M28, 22.3CFM, 115/200-230V, 1PH, 50/60HZ, FACTORY SET TO 230V, MAINS POWER CORD SOLD SEPARATELY

Unit Price:
$6,567.00
Availability:
KJLC will contact you
Quantity:

 Notes:
1.
ATEX versions available; please call or visit our website for more information.
2.
One charge of hydrocarbon oil will be provided with each pump.
3.
Power cord is not included and will need to be purchased separately based on regional plug type.
E2M28 Series Manual
For a download of the product manual, click here.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications

Manufacturer Edwards
Model E2M28
Pumping Speeds
50 (Hz)
16.2 CFM
458 L/min
7.64 L/s
27.5 m3/hr
60 (Hz)
19.5 CFM
552 L/min
9.20 L/s
33.1 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)
700 g/hr
Ultimate Pressure
Partial With Gas Ballast
2.00 x 10-1 hPA
2.00 x 10-1 mbar
2.00 x 101 Pa
1.50 x 10-1 Torr
Partial Without Gas Ballast
1.00 x 10-4 hPA
1.00 x 10-4 mbar
1.00 x 10-2 Pa
7.50 x 10-5 Torr
Total Without Gas Ballast
1.00 x 10-3 hPA
1.00 x 10-3 mbar
1.00 x 10-1 Pa
7.50 x 10-4 Torr
Cooling Method(s) Method
Convection
Motor Power HP 1.21
Motor Power kW 0.90
Inlet Flange KF25
Exhaust Flange 15mm NPT
Oil Type(s) Hydrocarbon Oil
Part: KJLSS19Q1
Oil Capacity Quarts
*Unless otherwise noted
1.47
Oil Capacity Liters
*Unless otherwise noted
1.40
Noise db(A) 57.0
Compression Stages 2
Series Standard
Weight Lbs 97.0
Weight kg 44.0
Lubrication Type Wet
Vacuum Range Coarse Vacuum (760 - 1 Torr)
Technology Type Rotary Vane
Dimensional Drawings
Charts

Accessories Table

For Pump Model(s) Description Accessory Type Part Number Price In Stock Add To Cart Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
For Pump Model(s) Description Accessory Type Part Number Price In Stock Add To Cart Combine
E2M18
E1M18
E2M28
Clamp for KF25
Hardware
QF25-100-C
P.O.R.
In Stock Add Item
E1M18, E2M18, E2M28 Clamping Kit, For QF25 Flange, Including Aluminum Clamp and FKM Centering Ring
KF Hardware Kit
QF25-HDKIT
P.O.R.
Contact KJLC for Availability
Add Item
E2M0.7
E2M1.5
Fluorocarbon Centering Ring for KF10
Hardware
QF10-050-SRV
$7.00
In Stock
Add Item
E2M18
E1M18
E2M28
Fluorocarbon Centering Ring for KF25
Hardware
QF25-100-SRV
$9.00
In Stock
Add Item
All EM Series Pumps KJLC 300 Convection Enhanced Pirani, KF16
Gauge
KJL300806
$540.00
Contact KJLC for Availability
Add Item
All EM Series
Pumps
KJLSS19 Hydrocarbon Oil (1 Gallon)
Hydrocarbon Oil
KJLSS19G1
$47.00
In Stock
Add Item
All EM Series
Pumps
KJLSS19 Hydrocarbon Oil (1 quart)
Hydrocarbon Oil
KJLSS19Q1
$18.00
In Stock
Add Item
E1M18, E2M18, E2M28 Mains Cable with CEE 7.7 Plug (Northern Europe) for single phase pumps, 2m length
Mains Cable
A50506003
P.O.R.
Contact KJLC for Availability
Add Item
E1M18, E2M18, E2M28 Mains Cable with NEMA 5-15 (N.A. / Japan) Plug for single phase, 2m length
Mains Cable
A50507003
P.O.R.
In Stock
Add Item
E1M18, E2M18, E2M28 Mains Cable with Type G (UK) Plug for single phase pumps, 2m length
Mains Cable
A50505003
P.O.R.
Contact KJLC for Availability
Add Item
E1M18, E2M18, E2M28 Mains Cable with flying leads for single phase pumps, 2m length
Mains Cable
A50508003
P.O.R.
Contact KJLC for Availability
Add Item
E2M28 Oil Mist Eliminator
A46233000
P.O.R.
Contact KJLC for Availability
Add Item
All EM Series Pumps Power Supply, KJLC 275i or 300, US Plug End
Power Cable
KJLPS401A
$70.00
In Stock
Add Item
E2M28 Repair Kit
A37301131
P.O.R.
Contact KJLC for Availability
Add Item
E2M28 Replacement Blade (Vane) Kit
A37301135
$213.00
Contact KJLC for Availability
Add Item
No items have been selected Include Main Part:  A37317984
