Kurt J. Lesker Company

Specifications

Manufacturer	KJLC

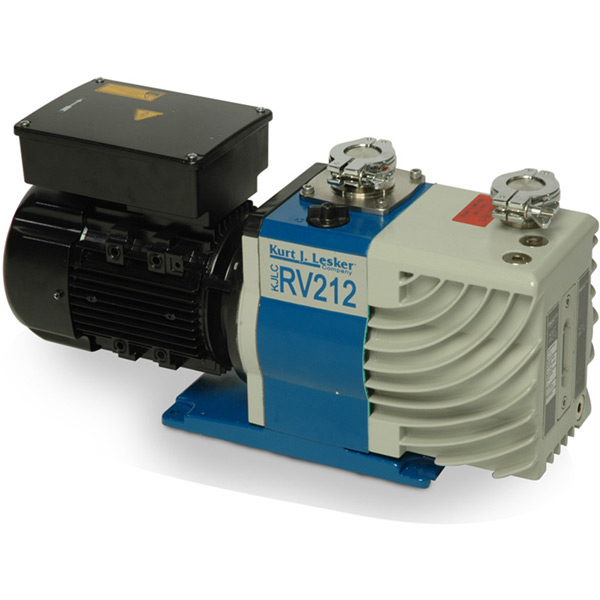

Model	KJLC-RV212
Pumping Speeds	50 (Hz) 6.36 CFM 179 L/min 2.99 L/s 10.8 m3/hr 60 (Hz) 7.60 CFM 215 L/min 3.57 L/s 12.9 m3/hr
Max Water Vapor Pumping Rate (with gas ballast)	280 g/hr
Ultimate Pressure	Partial With Gas Ballast 1.30 x 10^-2 hPA 1.30 x 10^-2 mbar 1.30 x 10⁰ Pa 9.75 x 10^-3 Torr Partial Without Gas Ballast 4.00 x 10^-4 hPA 4.00 x 10^-4 mbar 4.00 x 10^-2 Pa 3.00 x 10^-4 Torr
Cooling Method(s)	Method Convection
Motor Power HP	0.74
Motor Power kW	0.55
Inlet Flange	KF25
Exhaust Flange	KF25
Oil Type(s)	Hydrocarbon Oil Part: KJLSS19Q1
Oil Capacity Quarts *Unless otherwise noted	1.16
Oil Capacity Liters *Unless otherwise noted	1.10
Noise db(A)	68.0
Compression Stages	2
Series	Standard
Weight Lbs	64.0
Weight kg	29.0
Dimensions in.	19.5 x 6.50 x 9.92
Dimensions mm.	495 x 165 x 252
Lubrication Type	Wet
Vacuum Range	Medium Vacuum (1 - 10^-3 Torr)
Technology Type	Rotary Vane

Dimensional Drawings

Charts

For Pump Model(s)	Description	Accessory Type	Part Number	Price	In Stock	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
For Pump Model(s)	Description	Accessory Type	Part Number	Price	In Stock	Add To Cart	Combine
KJLC-RV206, KJLC-RV212, KJLC-RV224, KJLC-RV236	Clamping Kit, For QF25 Flange, Including Aluminum Clamp and FKM Centering Ring	KF Hardware Kit	QF25-HDKIT	P.O.R.
KJLC RV206, RV212, RV224	KJLC Inlet Particle Filter, KF25 Flange (25CFM) (Polyester Element Included)	Foreline Accessory	PFI843KF25B	$210.00
KJLC RV206, RV212, RV224, RV236	KJLSS19 Hydrocarbon Oil (1 quart)	Hydrocarbon Oil	KJLSS19Q1	$18.00
KJLC RV206, RV212	Mains Cable with NEMA 5-15 (N.A. / Japan) Plug for single phase	Mains Cable	KJLC-RVMCUS	P.O.R.
KJLC RV206, RV212	Mains Cable with NEMA 6-15 (N.A.) Plug for single phase	Mains Cable	KJLC-MCUSH6-15	P.O.R.
KJLC RV206, RV212	Mains Cable with flying leads for single phase pumps	Mains Cable	KJLC-MCUSH	P.O.R.
KJLC RV206, RV212	Mains Cable with Type G (UK) Plug for single phase pumps	Mains Cable	KJLC-RVMCUK	P.O.R.
KJLC RV206, RV212	Mains Cable with CEE 7/7 Plug (Northern Europe) for single phase pumps	Mains Cable	KJLC-RVMCEU	P.O.R.
KJLC RV206, RV212, RV224	KJLC Oil Mist Eliminator, KF25 Flange	Hydrocarbon Oil	PFEPSG925QF25	P.O.R.
KJLC RV212	Repair Kit	—	KJLC-RV212-RK	P.O.R.
