KJLC-RV236SSH

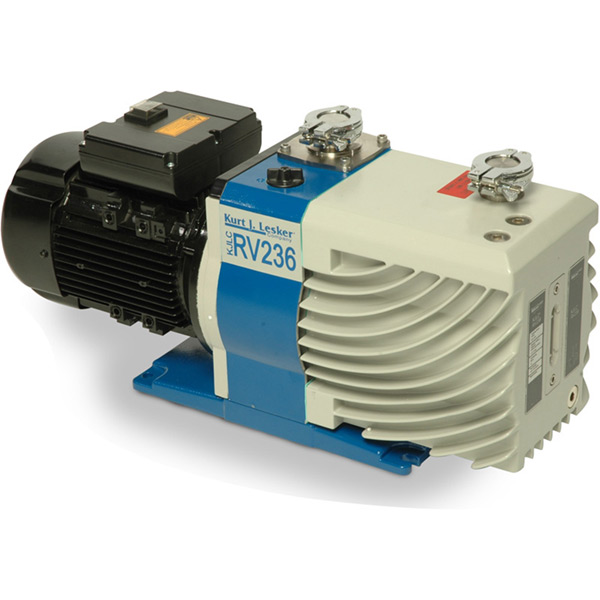

KJLC KJLC-RV236 Rotary Vane Pump, Hydrocarbon Oil, KF25 inlet flange, 32.41 m^3/hr at 50Hz / 22.9 CFM at 60Hz, Convection cooling, 220-240V 50/60 Hz, 1-Ø, Mains Cable Not Included

Unit Price:
$5,720.00
Availability:
In Stock
Quantity:
KJLC-RV236 Series Manual
For a download of the product manual, click here.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656

Specifications

Manufacturer KJLC
Model KJLC-RV236
Pumping Speeds
50 (Hz)
19.1 CFM
539 L/min
8.96 L/s
32.4 m3/hr
60 (Hz)
22.9 CFM
648 L/min
10.8 L/s
38.9 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)
350 g/hr
Ultimate Pressure
Partial With Gas Ballast
1.30 x 10-2 mbar
9.75 x 10-3 Torr
Partial Without Gas Ballast
4.00 x 10-4 mbar
3.00 x 10-4 Torr
Cooling Method(s) Method
Convection
Motor Power HP 1.48
Motor Power kW 1.10
Inlet Flange KF25
Exhaust Flange KF25
Oil Type(s) Hydrocarbon Oil
Part: KJLSS19Q1
Oil Capacity Quarts
*Unless otherwise noted
1.89
Oil Capacity Liters
*Unless otherwise noted
1.80
Noise db(A) 68.0
Compression Stages 2
Series Standard
Weight Lbs 86.0
Weight kg 39.0
Dimensions in. (W/D/H) 8.07 x 22.2 x 11.3
Dimensions mm. (W/D/H) 205 x 565 x 288
Lubrication Type Wet
Vacuum Range Medium Vacuum (1 - 10-3 Torr)
Technology Type Rotary Vane
Dimensional Drawings
Charts

Spare Parts Table

Description Accessory Type Part Number Price In Stock Add To Cart Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Description Accessory Type Part Number Price In Stock Add To Cart Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
KJLC Repair Kit for KJLC-RV236 Pumps
Repair Kit
KJLC-RV236-RK
$309.38
In Stock Add Item
KJLSS 19 Hydrocarbon Oil (1 gallon)
Hydrocarbon Oil
KJLSS19Q1
$22.00
In Stock
Add Item
No items have been selected Include Main Part:  KJLC-RV236SSH
How to Combine Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.

Accessories Table

Description Accessory Type Part Number Price In Stock Add To Cart Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Description Accessory Type Part Number Price In Stock Add To Cart Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Clamping Kit, For QF25 Flange, Including Aluminum Clamp and FKM Centering Ring
Hardware
QF25-HDKIT
$19.60
Contact KJLC for Availability Add Item
KJLC 300 Convection Enhanced Pirani, KF16
Gauge
KJL300806
$795.00
In Stock
Add Item
KJLC Inlet Particle Filter, KF25 Flange (25CFM) (Polyester Element Included)
Foreline Accessory
PFI843KF25B
$210.00
In Stock
Add Item
KJLC Oil Mist Eliminator, KF25 Flange
Exhaust Accessory
PFEPSG925QF25
$235.00
In Stock
Add Item
KJLSS 19 Hydrocarbon Oil (1 gallon)
Hydrocarbon Oil
KJLSS19Q1
$22.00
In Stock
Add Item
Mains Cable with CEE 7/7 Plug (Northern Europe) for single phase pumps
Mains Cable
KJLC-RVMCEU
$103.00
Contact KJLC for Availability
Add Item
Mains Cable with NEMA 5-15 (N.A. / Japan) Plug for single phase
Mains Cable
KJLC-RVMCUS
$33.00
In Stock
Add Item
Mains Cable with Type G (UK) Plug for single phase pumps
Mains Cable
KJLC-RVMCUK
$33.00
Contact KJLC for Availability
Add Item
Mains Cable with flying leads for single phase pumps
Mains Cable
KJLC-MCUSH
$33.00
Contact KJLC for Availability
Add Item
US Power supply for KJLC 300 Convection Enhanced Pirani
Gauge Power Supply
KJLPS401A
$96.00
Contact KJLC for Availability
Add Item
