D40B enlarge image tool

D40B D40BCS D40B D40B SV40B

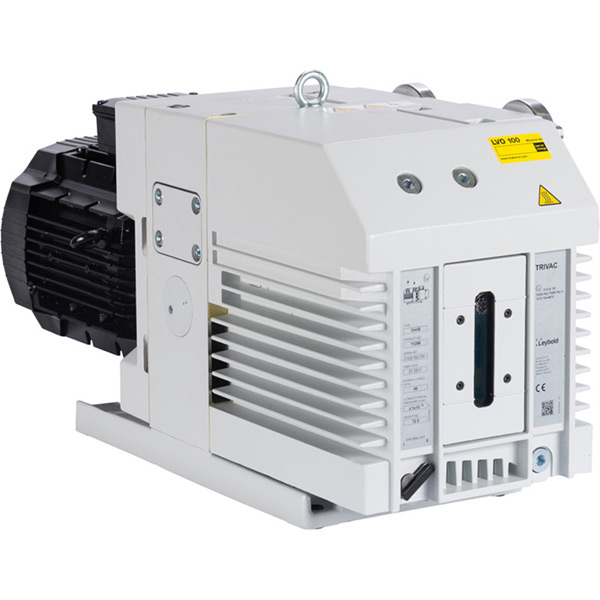

11286-R Pump, Remanufactured, Leybold Trivac D40B, Rotary Vane, Standard Series, Hydrocarbon Oil, KF40 Inlet Flange, 40 m^3/hr at 50Hz / 28.26 CFM at 60Hz, Convection Cooling, 230/460V, Three Phase, Mains Cable Not Included, 1 Year Warranty

SKU: SKU0239609
Unit Price:
$8,775.00
Availability:
In Stock
Quantity:
D40B Series Manual
D40B Series Manual
For a download of the product manual, click here.
Vacuum Pump Repair & Services
Vacuum Pump Repair & Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Pumps FAQ
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656

Specifications

Manufacturer Leybold
Model D40B
Pumping Speeds
50 (Hz)
23.5 CFM
40.0 m3/hr
60 (Hz)
28.3 CFM
48.0 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)		 1184 g/hr
Ultimate Pressure
Partial Without Gas Ballast
1.00×10-4 mbar
7.50×10-5 Torr
Total With Gas Ballast
5.00×10-3 mbar
3.80×10-3 Torr
Total Without Gas Ballast
8.00×10-4 mbar
6.00×10-4 Torr
Cooling Method(s) Method
Convection
Motor Power HP 2.95
Motor Power kW 2.20
Inlet Flange KF40
Exhaust Flange KF40
Oil Type(s) Hydrocarbon Oil
Part: KJLSS20G1
Oil Capacity Quarts
*Unless otherwise noted		 2.52
Oil Capacity Liters
*Unless otherwise noted 		2.40
Noise db(A) 59.0
Compression Stages 2
Series Standard
Weight Lbs 160
Weight kg 73.0
Dimensions in. (W/D/H) 10.4 x 29.9 x 14.0
Dimensions mm. (W/D/H) 264 x 760 x 355
Lubrication Type Wet
Vacuum Range Medium Vacuum (1 - 10-3 Torr) - Coarse Vacuum (760 - 1 Torr)
Technology Type Rotary Vane
Dimensional Drawings
Part number 11286-R drawing enlarge image tool
Charts
Leybold D25BD40BD enlarge image tool

Leybold D25BD40BD SOGEVAC SV40B-SV65B D40B D40B

Spare Parts Table

More
Info		 Description Accessory Type Part Number Price Ready to Ship Add To Cart Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More
Info		 Description Accessory Type Part Number Price Ready to Ship Add To Cart Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
KJLSS20 Hydrocarbon Oil (1 Gallon)
Hydrocarbon Oil
KJLSS20G1
$83.00
In Stock Add Item
No items have been selected Include Main Part:  11286-R
How to Combine Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.

Accessories Table

More
Info		 Description Accessory Type Part Number Price Ready to Ship Add To Cart Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More
Info		 Description Accessory Type Part Number Price Ready to Ship Add To Cart Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Clamp for KF40 Flange
Hardware
QF40-150-C
$10.15
In Stock Add Item
Clamping Kit, For QF40 Flange, Including Aluminum Clamp and FKM Centering Ring
Hardware
QF40-HDKIT
$26.05
KJLC will contact you
Add Item
Fluorocarbon Centering Ring for KF40 Flange
Hardware
QF40-150-SRV
$13.50
In Stock
Add Item
Leybold Trivac D40B Major Repair Kit
Repair Kit
EK110002613
$907.00
3-4 Weeks
Add Item
Leybold Trivac D40B Minor Repair Kit
Repair Kit
EK110002624
$69.00
3-4 Weeks
Add Item
Leybold Trivac D65B Minor Repair Kit
Repair Kit
EK110002624
$69.00
3-4 Weeks
Add Item
Oil Mist Eliminator
Exhaust Accessory
18916
$2,537.14
In Stock
Add Item
No items have been selected Include Main Part:  11286-R
How to Combine Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Contact Us - 11286-R - Pump, Remanufactured, Leybold Trivac D40B, Rotary Vane, Standard Series, Hydrocarbon Oil, KF40 Inlet Flange, 40 m^3/hr at 50Hz / 28.26 CFM at 60Hz, Convection Cooling, 230/460V, Three Phase, Mains Cable Not Included, 1 Year Warranty
