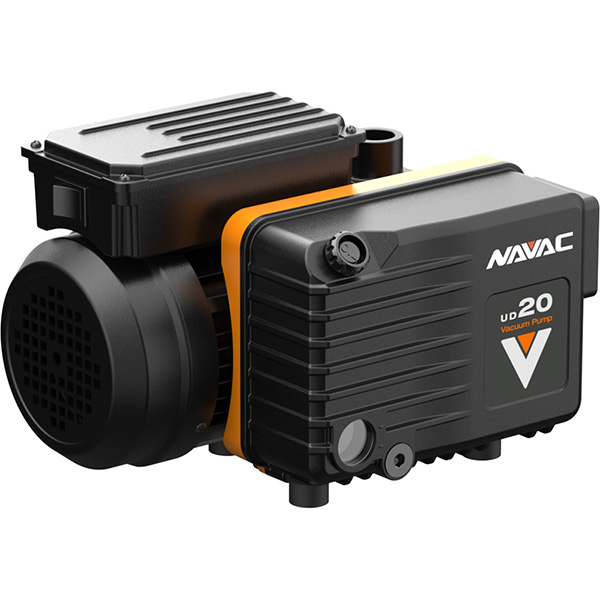

UD20 - NAVAC UD20 UniDrive Rotary Vane Pump, Single Stage, G 1/2 enlarge image tool
UD20 - NAVAC UD20 UniDrive Rotary Vane Pump, Single Stage, G 1/2 UD20 - NAVAC UD20 UniDrive Rotary Vane Pump, Single Stage, G 1/2 UD20 - NAVAC UD20 UniDrive Rotary Vane Pump, Single Stage, G 1/2 UD20 - NAVAC UD20 UniDrive Rotary Vane Pump, Single Stage, G 1/2 UD20 - NAVAC UD20 UniDrive Rotary Vane Pump, Single Stage, G 1/2

UD20 NAVAC UD20 UniDrive Rotary Vane Pump, Single Stage, G 1/2" Inlet Flange, 13CFM / 22M^3/HR, 115 VAC / 60 Hz 1 Phase, One charge of hydrocarbon oil included, US power cable included

SKU: SKU0405787
Unit Price:
$2,500.00
Availability:
In Stock
Quantity:

 Notes:
1.
For 3-phase motors, the pump includes flying leads; customer is responsible for wiring.
2.
Power cord is not included and will need to be purchased separately based on regional plug type.
3.
The UD line is the standard line of NAVAC single stage RV pumps. The UDS line is the line of NAVAC single stage RV pumps specifically designed for LC-MS applications.
4.
The first charge of hydrocarbon oil is included with the purchase of a new pump.
UD20 Series Manual
UD20 Series Manual
For a download of the product manual, click here.
Vacuum Pump Repair & Services
Vacuum Pump Repair & Services
World class service center for scheduled maintenance, evaluation, and vacuum pump repair.
Request a Service Quote
Request a Pump RMA
Pumps FAQ
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
Questions? Let's Talk!
Contact your dedicated Lesker sales team today.
+1 800 245 1656

Specifications

Manufacturer Navac
Model UD20
Pumping Speeds
50 (Hz)
12.9 CFM
22.0 m3/hr
60 (Hz)
12.9 CFM
22.1 m3/hr
Ultimate Pressure
Total With Gas Ballast
1.60 mbar
1.20 Torr
Total Without Gas Ballast
0.30 mbar
0.23 Torr
Cooling Method(s) Method
Forced Air
Motor Power HP 2.15
Motor Power kW 1.60
Inlet Flange G 1/2 in
Exhaust Flange G 3/4"
Oil Capacity Quarts
*Unless otherwise noted		 0.48
Oil Capacity Liters
*Unless otherwise noted 		0.45
Compression Stages 1
Weight Lbs 43.0
Weight kg 19.5
Dimensions in. (W/D/H) 9.80 x 12.5 x 8.60
Dimensions mm. (W/D/H) 248 x 317 x 218
Lubrication Type Wet
Dimensional Drawings
Part number UD20 drawing enlarge image tool

Accessories Table

More
Info		 Description Accessory Type Part Number Price Ready to Ship Add To Cart Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More
Info		 Description Accessory Type Part Number Price Ready to Ship Add To Cart Combine Tooltip How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Service Kit for NAVAC UniDrive UD20
Repair Kits
UD20-SK
P.O.R.
KJLC will contact you Add Item
No items have been selected Include Main Part:  UD20
How to Combine Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Contact Us - UD20 - NAVAC UD20 UniDrive Rotary Vane Pump, Single Stage, G 1/2" Inlet Flange, 13CFM / 22M^3/HR, 115 VAC / 60 Hz 1 Phase, One charge of hydrocarbon oil included, US power cable included
