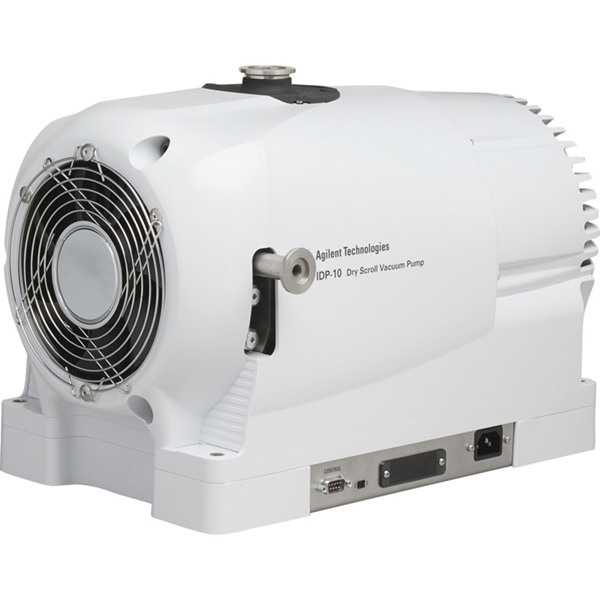

X3810-64000 Agilent IDP-10 Scroll Pump, KF25 Inlet Flange, 10.2 m^3/hr at 50Hz / 6 CFM at 60Hz, Convection Cooling, 100-120/220-240 VAC, 50/60Hz, 1-Ø, Mains Cable Not Included

SKU: SKU0291058

Unit Price:

$7,450.00

Availability:

Estimated Delivery: 6-7 Weeks

Notes:

These pumps are not suitable for liquids, dust-laden gases, or corrosive gases.

Power cord is not included and will need to be purchased separately based on regional plug type.

Specifications

Manufacturer	Agilent
Model	IDP-10
Pumping Speeds	50 (Hz) 6.00 CFM 10.2 m³/hr 60 (Hz) 6.00 CFM 10.2 m³/hr
Max Water Vapor Pumping Rate (with gas ballast)	120 g/hr
Ultimate Pressure	Total Without Gas Ballast 2.00×10^-2 mbar 1.50×10^-2 Torr
Cooling Method(s)	Method Convection
Motor Power HP	0.50
Motor Power kW	0.35
Inlet Flange	KF25
Exhaust Flange	KF16
Noise db(A)	53.0
Compression Stages	1
Series	Standard Series
Weight Lbs	54.5
Weight kg	24.7
Dimensions in. (W/D/H)	10.2 x 16.5 x 294
Dimensions mm. (W/D/H)	260 x 420 x 294
Lubrication Type	Dry
Vacuum Range	Medium Vacuum (1 - 10^-3 Torr) - Coarse Vacuum (760 - 1 Torr)
Technology Type	Scroll

Charts

More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
	Tip Seal Replacement Kit	Repair Kit	X3807-67000	$416.00	7-8 Weeks		Combine

No items have been selected Include Main Part: X3810-64000

How to Combine Click the checkboxes of the parts you would like to purchase and then click the

button below to add all parts selected into your Cart.

More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
	Clamping Kit, For QF25 Flange, Including Aluminum Clamp and FKM Centering Ring	Hardware	QF25-HDKIT	$19.60	KJLC will contact you		Combine
	Europe, 10 A, 220–230 VAC, 2.5 m*	Mains Cable	656494220	$56.12	6-7 Weeks		Combine
	North America, 10 A, 230 VAC, 2.5 m*	Mains Cable	656494255	$62.96	6-7 Weeks		Combine
	North America, 15 A, 125 VAC, 2.0 m*	Mains Cable	656458203	$58.82	6-7 Weeks		Combine
	Switzerland, 10 A, 230 VAC, 2.5 m*	Mains Cable	V656494235	P.O.R.	KJLC will contact you		Combine
	UK/Ireland, 13 A 230 VAC, 2.5 m*	Mains Cable	656494250	$73.92	6-7 Weeks		Combine

No items have been selected Include Main Part: X3810-64000

How to Combine Click the checkboxes of the parts you would like to purchase and then click the

button below to add all parts selected into your Cart.
