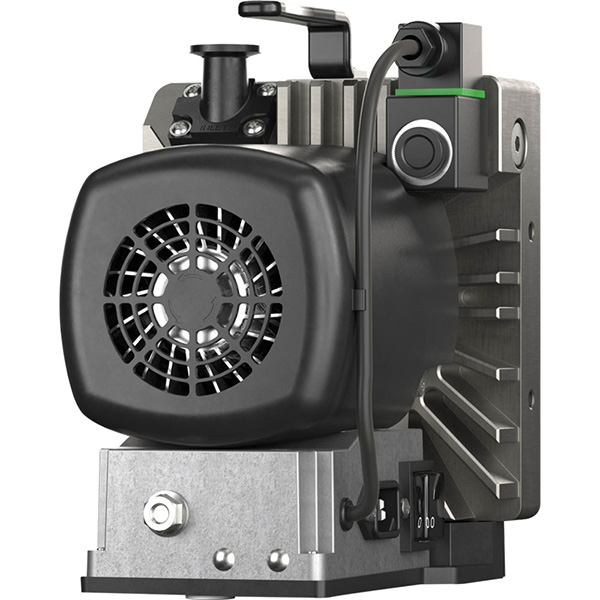

142030V430

Unit Price:

P.O.R.

Availability:

KJLC will contact you.

Notes:

Power cord is not included and will need to be purchased separately based on regional plug type.

Specifications

Manufacturer	Leybold
Model	Scrollvac 3s
Pumping Speeds	50 (Hz) 1.77 CFM 3.00 m³/hr 60 (Hz) 2.00 CFM 3.50 m³/hr
Ultimate Pressure	Total With Gas Ballast 0.15 mbar 0.10 Torr Total Without Gas Ballast 0.10 mbar 7.50×10^-2 Torr
Cooling Method(s)	Method Convection
Motor Power HP	0.24
Motor Power kW	0.18
Inlet Flange	KF16
Exhaust Flange	1/8" BSP
Noise db(A)	54.0
Compression Stages	1
Weight Lbs	17.2
Weight kg	7.80
Dimensions in. (W/D/H)	6.22 x 8.82 x 9.09
Dimensions mm. (W/D/H)	231 x 158 x 224
Lubrication Type	Dry
Vacuum Range	Coarse Vacuum (760 - 1 Torr)

More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
	ScrollVac 3/3S Bearing replacement Kit	Repair Part	GK7440002	$454.00	3-4 Weeks		Combine
	ScrollVac 3/3S Gas ballast and Exhaust kit	Repair Part	GK7440003	$199.00	KJLC will contact you		Combine
	ScrollVac 3/3S Tip Seal Kit	Repair Part	GK7440001	$649.00	3-4 Weeks		Combine

No items have been selected Include Main Part: 142030V430

How to Combine Click the checkboxes of the parts you would like to purchase and then click the

button below to add all parts selected into your Cart.

More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
	ScrollVac 3/3S Lead Assembly, 10 Amax, C13, USA	Mains Cable	800102V1002	$105.00	3-4 Weeks		Combine
