141010V30

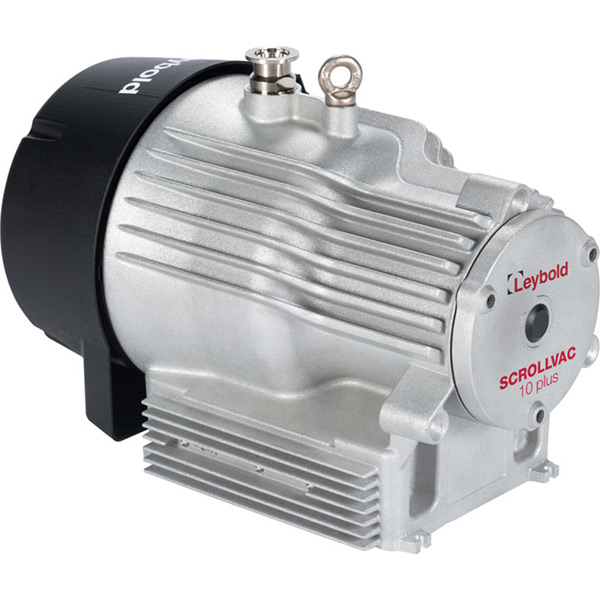

SCROLL PUMP, SCROLLVAC 10 PLUS, DN 25 ISO-KF, 3-PHASE

Unit Price:
P.O.R.
Availability:
KJLC will contact you
Quantity:
Scrollvac 10 Plus Series Manual
For a download of the product manual, click here.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications

Model Scrollvac 10 Plus
Pumping Speeds
50 (Hz)
6.24 CFM
176 L/min
2.94 L/s
10.6 m3/hr
60 (Hz)
6.24 CFM
176 L/min
2.94 L/s
10.6 m3/hr
Max Water Vapor
Pumping Rate
(with gas ballast)
140 g/hr
Ultimate Pressure
Total Without Gas Ballast
9.00 x 10-3 hPA
9.00 x 10-3 mbar
9.00 x 10-1 Pa
6.50 x 10-3 Torr
Cooling Method(s) Method
Convection
Motor Power HP 0.38
Motor Power kW 0.28
Inlet Flange KF25
Exhaust Flange KF25
Noise db(A) 55.0
Compression Stages 1
Weight Lbs 56.0
Weight kg 25.5
Dimensions in. 16.9 x 11.1 x 12.8
Dimensions mm. 430 x 282 x 325
Lubrication Type Dry
Vacuum Range Medium Vacuum (1 - 10-3 Torr)
Technology Type Scroll
Dimensional Drawings
Charts

Accessories Table

For Pump Model(s) Description Part Number Price In Stock Add To Cart Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
For Pump Model(s) Description Part Number Price In Stock Add To Cart Combine
Scrollvac 18 Chemical Resistance Conversion Kit (C-conversion kit)
141101A02
P.O.R.
Call for Availability Add Item
Scrollvac 7, 10, and 15 Chemical Resistance Conversion Kit (C-conversion kit)
141101A01
P.O.R.
Call for Availability
Add Item
Scrollvac 10 Plus, Scrollvac 15 Plus, Scrollvac 18 Plus, Scrollvac 7 Plus Clamping Kit, For QF25 Flange, Including Aluminum Clamp and FKM Centering Ring
QF25-HDKIT
P.O.R.
Call for Availability
Add Item
Scrollvac 7, 10, 15 and 18 Gas Ballast adapter blank (H-Conversion kit)
141100A01
P.O.R.
Call for Availability
Add Item
Scrollvac 7, 10, 15 and 18 Gas ballast adapter for external gas line with fine restriction (Quick connect 1/4")
141100A03
P.O.R.
Call for Availability
Add Item
Scrollvac 7, 10, 15 and 18 Gasballast adapter for external gas line no restriction (Quick connect 1/4")
141100A02
P.O.R.
Call for Availability
Add Item
Scrollvac 7, 10, 15 and 18 Main Cable, Europe, 2.0 meter
161810EU
P.O.R.
Call for Availability
Add Item
Scrollvac 7, 10, 15 and 18 Main Cable, Great Britain, 2.0 meter
161810UK
P.O.R.
Call for Availability
Add Item
Scrollvac 7, 10, 15 and 18 Main Cable, US, 115V NEMA, 3.0 meter
141103US
P.O.R.
Call for Availability
Add Item
Scrollvac 7, 10, 15 and 18 Main Cable, US, 208/230V NEMA, 2.5 meter
161810US
P.O.R.
Call for Availability
Add Item
Scrollvac 18 Minor Service Kit, C-Version (for aggressive applications)
EK117141003
P.O.R.
Call for Availability
Add Item
Scrollvac 7, 10, and 15 Minor Service Kit, C-Version (for aggressive applications)
EK117141002
P.O.R.
Call for Availability
Add Item
Scrollvac 18 Minor Service Kit, Standard (with manual gas ballast)
EK117141001
P.O.R.
Call for Availability
Add Item
Scrollvac 7, 10, and 15 Minor Service Kit, Standard (with manual gas ballast)
EK117141000
P.O.R.
Call for Availability
Add Item
Scrollvac 7, 10, 15 and 18 Silencer
141102A02
P.O.R.
Call for Availability
Add Item
Scrollvac 7, 10, 15 and 18 Vibration Isolators
141102A01
P.O.R.
Call for Availability
Add Item
