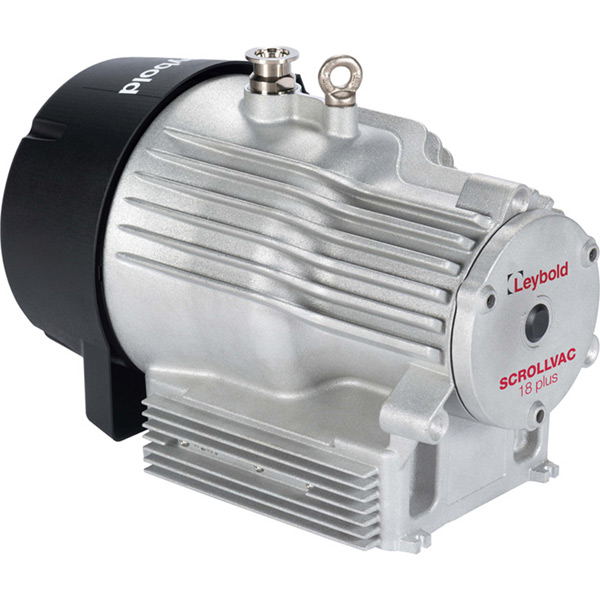

141018V10 Leybold Scrollvac 18 Plus Scroll Pump, KF25 Inlet Flange, 20 m^3/hr at 50Hz / 11.78 CFM at 60Hz, Convection Cooling, 100-127 VAC/200-240 VAC 50/60 Hz, 1- Ø, Mains Cable Not Included

SKU: SKU0310049

Unit Price:

$13,371.00

Availability:

KJLC will contact you.

Specifications

Manufacturer	Leybold
Model	Scrollvac 18 Plus
Pumping Speeds	50 (Hz) 11.8 CFM 20.0 m³/hr 60 (Hz) 11.8 CFM 20.0 m³/hr
Max Water Vapor Pumping Rate (with gas ballast)	220 g/hr
Ultimate Pressure	Total Without Gas Ballast 3.00×10^-2 mbar 2.25×10^-2 Torr
Cooling Method(s)	Method Convection
Motor Power HP	0.35
Motor Power kW	0.26
Inlet Flange	KF25
Exhaust Flange	KF25
Noise db(A)	55.0
Compression Stages	1
Weight Lbs	56.0
Weight kg	25.5
Dimensions in. (W/D/H)	11.1 x 16.9 x 12.8
Dimensions mm. (W/D/H)	282 x 430 x 325
Lubrication Type	Dry
Vacuum Range	Medium Vacuum (1 - 10^-3 Torr) - Coarse Vacuum (760 - 1 Torr)
Technology Type	Scroll

Dimensional Drawings

Charts

Spare Parts Table

More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
	Minor Service Kit, C-Version (for aggressive applications)	Repair Kit	EK117141003	$3,277.00	KJLC will contact you		Combine
	Minor Service Kit, Standard (with manual gas ballast)	Repair Kit	EK117141001	$768.00	KJLC will contact you		Combine

No items have been selected Include Main Part: 141018V10

How to Combine Click the checkboxes of the parts you would like to purchase and then click the

button below to add all parts selected into your Cart.

Accessories Table

More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
	Chemical Resistance Conversion Kit (C-conversion kit)	Hardware	141101A02	$2,606.93	KJLC will contact you		Combine
	Clamping Kit, For QF25 Flange, Including Aluminum Clamp and FKM Centering Ring	Hardware	QF25-HDKIT	$19.60	KJLC will contact you		Combine
	KJLC 300 Convection Enhanced Pirani, KF16	Gauge	KJL300806	$825.00	KJLC will contact you		Combine
	Leybold "C" Conversion Kit for ScrollVac Plus Pumps	Hardware	141101A01	$1,416.53	KJLC will contact you		Combine
	Leybold Exhaust Silencer for ScrollVac Plus Pumps	Exhaust Accessory	141102A02	$617.60	1-2 Weeks		Combine
	Leybold Gas Ballast Adaptor (External Gas Line with Fine Restriction) for ScrollVac Pumps	Foreline Accessory	141100A03	$422.40	KJLC will contact you		Combine
	Leybold Gas Ballast Adaptor (External Gas Line) for ScrollVac Pumps	Foreline Accessory	141100A02	$422.40	KJLC will contact you		Combine
	Leybold Gas Ballast Blank (H-Conversion Kit) for ScrollVac Pumps	Foreline Accessory	141100A01	$152.53	KJLC will contact you		Combine
	Leybold Vibration Isolator for ScrollVac Plus Pumps	Hardware	141102A01	$313.60	KJLC will contact you		Combine
	Mains Cable with CEE 7/7 Plug (Northern Europe) for single phase pumps, 2m length	Mains Cable	161810EU	$84.00	1-2 Weeks		Combine
	Mains Cable with NEMA 5-15 (N.A. / Japan) Plug for single phase, 2m length	Mains Cable	141103US	$99.20			Combine
	Mains Cable with NEMA 6-15 (N.A.) Plug for single phase, 2.5m length	Mains Cable	161810US	$99.20			Combine
	Mains Cable with Type G (UK) Plug for single phase pumps, 2m length	Mains Cable	161810UK	$84.00	2-3 Weeks		Combine
	US Power supply for KJLC 300 Convection Enhanced Pirani	Gauge Power Supply	KJLPS401A	$181.00			Combine
