PMP04301

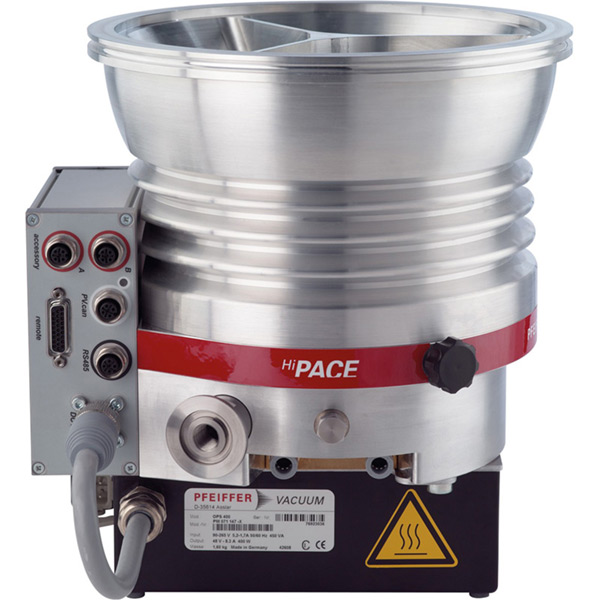

TURBO PUMP, PFEIFFER, HIPACE 800, DN200 CF-F WITH DRIVE UNIT, TC400, 48V DC

Unit Price:
P.O.R.
Availability:
KJLC will contact you
Quantity:

 Notes:
1.
The HiPace 80, 300, 400, and 700 have integrated on-board drive controllers, but no integrated power supply. The power supply is part of the associated DCU controller. The HiPace 1200, 1500, 1800, and 2300 have integrated on-board drive controllers and power supplies. This enables for the use of the DCU 002, a controller with no integrated power supply.
2.
All pumps require the following accessories for operation: Power Supply, Connection Cable and Power Cable
HiPace 800 Series Manual
For a download of the product manual, click here.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications

Manufacturer Pfeiffer
Model HiPace 800
Pumping Speeds
N2: 790 L/s
Ar: 780 L/s
H2: 580 L/s
He: 700 L/s
Max Gas Throughput Ar: 33.5 mbar*L/s
H2: 14.0 mbar*L/s
He: 20.0 mbar*L/s
N2: 6.50 mbar*L/s
Ultimate Pressure
ISO-K Flange
9.98 x 10-8 hPA
9.98 x 10-8 mbar
10.00 x 10-6 Pa
7.50 x 10-8 Torr
Max Foreline Pressure 6.00 x 100 hPA
6.00 x 100 mbar
1.47 x 103 Pa
1.10 x 101 Torr
Cooling Method(s) Method
Forced Air
Water
Foreline Flange DN 25 ISO-KF
Inlet Flange DN200CF (10.00" OD)
Compression Ratio(s) Ar: 1.00 x 1011
H2: 4.00 x 105
He: 3.00 x 107
N2: 1.00 x 1011
Weight Lbs 42.1
Weight kg 19.1
Lubrication Type Dry
Vacuum Range Ultra High Vacuum (10-9 - 10-12 Torr)
Technology Type Turbomolecular

Accessories Table

For Pump Model(s) Description Part Number Price In Stock Add To Cart Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
For Pump Model(s) Description Part Number Price In Stock Add To Cart Combine
HiPace 1200, HiPace 1200C, HiPace 800 Bolting Kit, For DN200CF (10.00" OD) Flange, Including Bolt, Nut, and Washer Set and Copper Gasket
DN200CF-HDKIT
P.O.R.
Call for Availability Add Item
HiPace 10, HiPace 400, HiPace 700, HiPace 800 Clamping Kit, For QF25 Flange, Including Aluminum Clamp and FKM Centering Ring
QF25-HDKIT
P.O.R.
Call for Availability
Add Item
HiPace 300, HiPace 400, HiPace 700, HiPace 800 Connection Cable, TC 400 to DCU, 3 m Length
PM061352-T
P.O.R.
In Stock
Add Item
HiPace 400, HiPace 700, HiPace 800 DCU400 Display Control Unit with Integrated Power Supply
PMC01823
$2,650.00
In Stock
Add Item
DCU110, DCU310, DCU400 Power Cable, 110 VAC
P4564309ZE
$39.00
In Stock
Add Item
