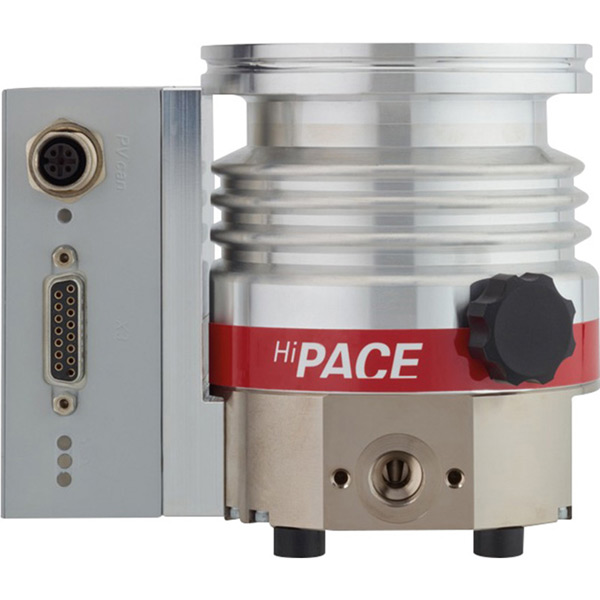

PMP05281 Pfeiffer Vacuum HiPace 30 with TC110 Turbomolecular Pump, DN63CF (4.50" OD) inlet flange, 32 L/s, Forced Air Cooling

SKU: SKU0301544

Unit Price:

$7,480.00

Availability:

Notes:

All pumps require the following accessories for operation: Power Supply, Connection Cable and Power Cable

The HiPace 80, 300, 400, and 700 have integrated on-board drive controllers, but no integrated power supply. The power supply is part of the associated DCU controller. The HiPace 1200, 1500, 1800, and 2300 have integrated on-board drive controllers and power supplies. This enables for the use of the DCU 002, a controller with no integrated power supply.

Specifications

Manufacturer	Pfeiffer Vacuum
Model	HiPace 30
Pumping Speeds	N2: 32.0 L/s He: 24.0 L/s H2: 20.0 L/s Ar: 32.0 L/s
Max Gas Throughput	Ar: 0.22 mbarL/s H2:* 10.0 mbarL/s He:* 1.84 mbarL/s N2:* 0.66 mbar*L/s
Ultimate Pressure	ConFlat Flange 1.00×10^-7 mbar 7.50×10^-8 Torr
Max Foreline Pressure	24.00 mbar 18.00 Torr
Cooling Method(s)	Method Forced Air Water
Foreline Flange	DN 16 ISO-KF/G 1/4"
Inlet Flange	DN63CF (4.50" OD)
Compression Ratio(s)	N2: 1.00×10¹¹ Ar: 1.00×10¹¹ He: 3.00×10⁷ H2: 3.00×10⁵
Weight Lbs	7.04
Weight kg	3.20
Lubrication Type	Dry
Vacuum Range	High Vacuum (10^-4 - 10^-8 Torr) - Ultra High Vacuum (10^-9 - 10^-12 Torr)
Technology Type	Turbomolecular

Charts

Accessories Table

More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
	Air cooling for HiPace 60 P and 80, SplitFlow 50/80, 115 V	Turbo Accessory	PMZ01344	P.O.R.	KJLC will contact you		Combine
	Air cooling for HiPace 60 P, HiPace 80 and SplitFlow 50/80 with TC 110/120	Turbo Accessory	PMZ01300	P.O.R.	KJLC will contact you		Combine
	Air cooling for HiPace 60/80, SplitFlow 50/80, 230 V	Turbo Accessory	PMZ01343	P.O.R.	KJLC will contact you		Combine
	Air cooling, shielded	Turbo Accessory	PMZ01369	P.O.R.	KJLC will contact you		Combine
	Bolting Kit, For DN63CF (4.50" OD) Flange, Including Bolt, Nut, and Washer Set and Copper Gasket	Hardware	DN63CF-HDKIT	$80.40	KJLC will contact you		Combine
	Clamping Kit, For QF16 Flange, Including Aluminum Clamp and FKM Centering Ring	Hardware	QF16-HDKIT	$15.45	KJLC will contact you		Combine
	Connecting cable from 24V/48V power supply pack to electronic drive unit. With RS-485 interface	Turbo Accessory	PM061350-T	$407.00	6-7 Weeks		Combine
	Extension cable M8 on M8	Turbo Accessory	PM061783-T	P.O.R.	KJLC will contact you		Combine
	Front panel kit for TPS 111	Turbo Accessory	PM061393-T	P.O.R.	KJLC will contact you		Combine
	Interface cable, M12 m straight / M12 m angled, 0.7 m	Turbo Accessory	PM061791-T	P.O.R.	KJLC will contact you		Combine
	Interface cable, M12 m straight / M12 m straight, 3 m	Turbo Accessory	PM061283-T	$209.00	KJLC will contact you		Combine
	Mains cable 115 V AC, NEMA 5-15 to C13, 3 m	Mains Cable	P4564309ZE	$43.00			Combine
	Mains cable 208 V AC, NEMA 6-15 to C13, 3 m	Mains Cable	P4564309ZF	$98.62	3-4 Weeks		Combine
	Mains cable 230 V AC, CEE 7/7 to C13, 3 m	Mains Cable	P4564309ZA	$45.25	2-3 Weeks		Combine
	OmniControl 200, rack unit with integrated power supply pack	Turbo Accessory	PED521100	P.O.R.	KJLC will contact you		Combine
	OmniControl 200, table unit with integrated power supply pack	Turbo Accessory	PEE521100	P.O.R.	KJLC will contact you		Combine
	Relay box for backing pumps, 1-phase motor 20 A for TC 110/120 and TCP 350, plug M8	Turbo Accessory	PM061373-T	$535.70			Combine
	Relay box, shielded, for backing pumps, 1-phase motor 7A for TC 110/120 and TCP 350, plug M8	Turbo Accessory	PM071282-X	$987.80	4-5 Weeks		Combine
	TPS 110, power supply pack for wall/standard rail installation	Turbo Accessory	PM061340-T	$776.60	4-5 Weeks		Combine
	TPS 111, power supply pack 19" plug-in unit 3HU	Turbo Accessory	PM061344-T	P.O.R.	KJLC will contact you		Combine
	TVV 001, fore-vacuum safety valve, 115 V AC	Turbo Accessory	PMZ01206	P.O.R.	KJLC will contact you		Combine
	TVV 001, fore-vacuum safety valve, 230 V AC	Turbo Accessory	PMZ01205	P.O.R.	KJLC will contact you		Combine
	USB RS-485 converter	Turbo Accessory	PM061207-T	$470.00	7-8 Weeks		Combine
	Vibration damper for HiPace 60/80, DN 63 ISO-K	Turbo Accessory	PM006800-X	P.O.R.	KJLC will contact you		Combine
	Water cooling for HiPace 30 \| HiPace 80 mini with push-in fitting, 8 mm	Turbo Accessory	PM016847-T	P.O.R.	KJLC will contact you		Combine
	Water cooling for HiPace 60 P / 80 / 350 / 450 and for SplitFlow 50 / 80 with push-in fitting, 8 mm	Turbo Accessory	PM016623-T	$236.50			Combine
