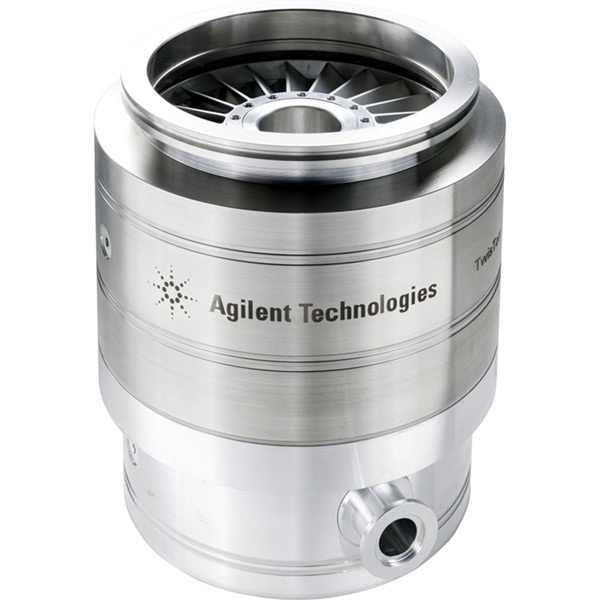

X3511-64017 Agilent TwisTorr 704 FS Turbomolecular Pump, DN160CF (8.00" OD) inlet flange, 660 L/s, Forced Air Cooling

SKU: SKU0372521

Unit Price:

$21,250.00

Availability:

KJLC will contact you.

Notes:

All pumps require a Controller and Power Cord for proper operation. An Inlet Screen, Vent Valve, and Air Cooling Fan may be required for select applications.

Specifications

Manufacturer	Agilent
Model	TwisTorr 704 FS
Pumping Speeds	N2: 660 L/s He: 640 L/s H2: 480 L/s Ar: 625 L/s
Max Gas Throughput	Ar: 1.50 mbarL/s He:* 7.90 mbarL/s N2:* 4.30 mbar*L/s
Ultimate Pressure	ConFlat Flange 1.00×10^-10 mbar 7.50×10^-11 Torr
Max Foreline Pressure	10.00 mbar 7.50 Torr
Cooling Method(s)	Method Forced Air
Foreline Flange	KF25
Inlet Flange	DN160CF (8.00" OD)
Compression Ratio(s)	Ar: 1.00×10¹¹ He: 2.00×10⁸ H2: 3.00×10⁶ N2: 1.00×10¹¹
Weight Lbs	48.4
Weight kg	20.0
Lubrication Type	Dry
Vacuum Range	High Vacuum (10^-4 - 10^-8 Torr) - Ultra High Vacuum (10^-9 - 10^-12 Torr)
Technology Type	Turbomolecular

Charts

Accessories Table

More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
More Info	Description	Accessory Type	Part Number	Price	Ready to Ship	Add To Cart	Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
	Agilent Air cooling kit, available with 5 m cable, 3 pin connector, for 404 FS, 704 FS, 804 FS, V1001, V551, V701, V1KG turbo pumps with rack controllers	Turbo Accessory	X3501-68001	$848.00	KJLC will contact you		Combine
	Agilent Cold Cathode Pirani FRG700/702, CF40	Gauge	FRG702CF35	P.O.R.	KJLC will contact you		Combine
	Agilent Cold Cathode Pirani FRG700/702, KF40	Gauge	FRG702KF40	P.O.R.	KJLC will contact you		Combine
	Agilent TwisTorr medium turbo pump onboard controller, for use with TwisTorr 404, 704, 804 FS turbo pumps	Turbo Accessory	X3512-64016	P.O.R.	KJLC will contact you		Combine
	Bolting Kit, For DN160CF (8.00" OD) Flange, Including Bolt, Nut, and Washer Set and Copper Gasket	Hardware	DN160CF-HDKIT	$134.00	KJLC will contact you		Combine
	Clamping Kit, For QF25 Flange, Including Aluminum Clamp and FKM Centering Ring	Hardware	QF25-HDKIT	$19.60	KJLC will contact you		Combine
	Mains Cable with CEE 7/7 Plug (Northern Europe) for single phase pumps, 3m length	Mains Cable	9699957	$60.81	KJLC will contact you		Combine
	Side mounting bracket, for 404 FS, 704 FS, 804 FS Navigator onboard controllers	Turbo Accessory	X3511-68003	P.O.R.	KJLC will contact you		Combine
