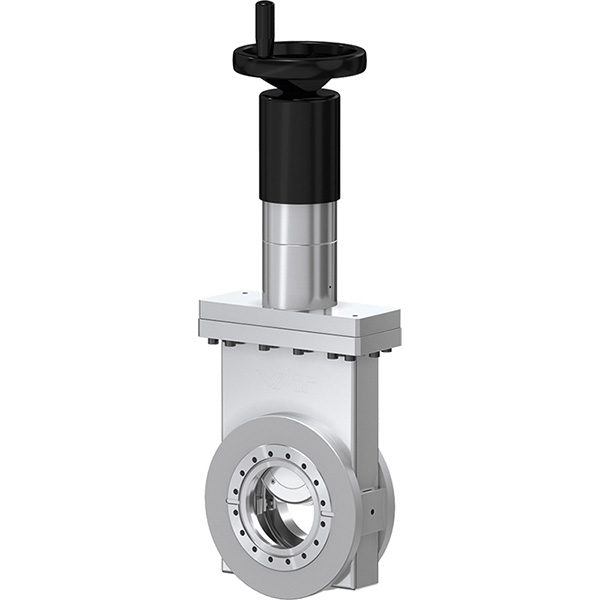

48124-CE08

Unit Price:

P.O.R.

Availability:

KJLC will contact you.

Specifications

Manufacturer	VAT
Series	48.1
Pressure	Torr Min: 7.50×10^-12 Torr Max: 1500 Torr mbar 1.00×10^-11 mbar bar 2.00 bar
Temperature	Actuator ≤140 ºC Position Indicator ≤80.0 ºC Valve Body ≤300 ºC
Shaft Seal Type	Metal
Cycle Life	20,000
Actuator Type	Manual
Solenoid Kit Included	No
Position Indicators	Yes
Normal Position	Any
Mounting Orientation	Any
Valve Body Material	Stainless Steel
Valve Seal Material	Metal
Solenoid Kit Included	No
Position Indicators	Yes
Bonnet Seal Type	Metal
Flange Size	DN16CF (1.33 in / 33.78 mm OD)
Valve Size	DN 16 (5/8")
Conductance (l/s)	10
Weight Lbs (kg)	6.61 ()
