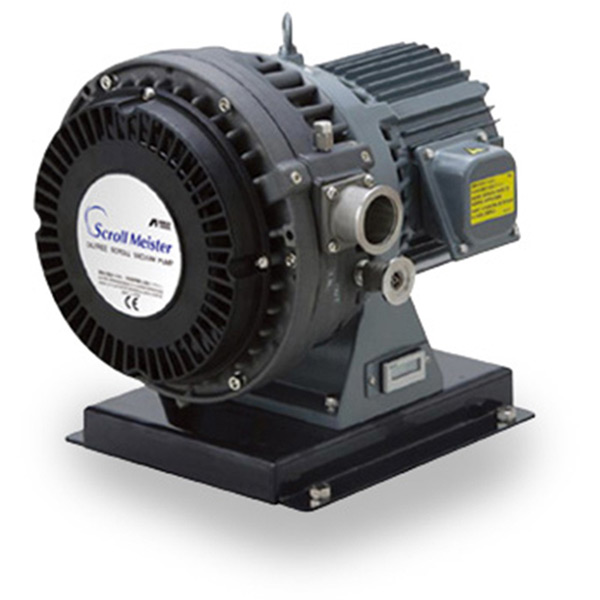

ISP-500C-TH
PUMP, SCROLL,ISP-500C,HORIZONTAL DN 40 ISO-KF INLET/DN 25 ISO-KF OUTLET, 500L/min @50HZ, THREE PHASE

Unit Price:
P.O.R.
Availability:
KJLC will contact you
Quantity:
ISP-500C Series Manual
For a download of the product manual, click here.
Pumps FAQ
Click here for answers to some of the most common questions we are asked.
Contact Us
Contact Us
To contact someone directly, please click here, or call +1 412 387 9200 to get in contact with your dedicated sales team.

Specifications

Manufacturer Anesta Iwata
Model ISP-500C
Pumping Speeds
50 (Hz)
15.3 CFM
433 L/min
7.22 L/s
26.0 m3/hr
60 (Hz)
18.3 CFM
518 L/min
8.60 L/s
31.1 m3/hr
Ultimate Pressure
Total Without Gas Ballast
1.00 x 10-2 hPA
1.00 x 10-2 mbar
1.00 Pa
7.50 x 10-3 Torr
Cooling Method(s) Method
Convection
Motor Power HP 0.82
Motor Power kW 0.60
Inlet Flange KF40
Exhaust Flange KF25
Noise db(A) 62.0
Noise db(A)
(with gas ballast)
70.0
Compression Stages 2
Weight Lbs 84.0
Weight kg 38.0
Dimensions in. 17.4 x 12.9 x 15.6
Dimensions mm. 443 x 328 x 397
Lubrication Type Dry
Vacuum Range Coarse Vacuum (760 - 1 Torr)
Technology Type Scroll
Dimensional Drawings
Charts

Accessories Table

Description For Pump Model(s) Accessory Type Part Number Price In Stock Add To Cart Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Description For Pump Model(s) Accessory Type Part Number Price In Stock Add To Cart Combine How to Combine - Click the checkboxes of the parts you would like to purchase and then click the button below to add all parts selected into your Cart.
Auto-Soft Flow Actuated Check Valve (KF40) ISP-500C
Hardware
225-0040
P.O.R.
Contact KJLC for Availability Add Item
Clamping Kit, For QF40 Flange, Including Aluminum Clamp and FKM Centering Ring ISP-1000, ISP-500C
KF Hardware Kit
QF40-HDKIT
P.O.R.
Contact KJLC for Availability
Add Item
KJLC 300 Convection Enhanced Pirani, KF16 All ISP Pumps
Gauge
KJL300806
$721.00
Contact KJLC for Availability
Add Item
Power Supply, KJLC 275i or 300, US Plug End All ISP Pumps
Gauge Power Cable
KJLPS401A
$87.00
Contact KJLC for Availability
Add Item
Anest Iwata Minor Repair Kit for ISP-500 Pumps ISP-500
Repair Kit
98881250
$700.00
Contact KJLC for Availability
Add Item
Anest Iwata Major Repair Kit for ISP-500 Pumps ISP-500
Repair Kit
98882251
P.O.R.
Contact KJLC for Availability
Add Item
Anest Iwata Tip Seal Replacement Kit for ISP-500 Pumps ISP-500
Repair Kit
98883240
$751.00
Contact KJLC for Availability
Add Item
